FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Connector & pin-configuration
4-pin PWM
Cable length
40cm
Bearing
SSO2
Blade geometry
Heptaperf™
Frame technology
FocusedFlow™
Material
Fibre-glass reinforced polyamide

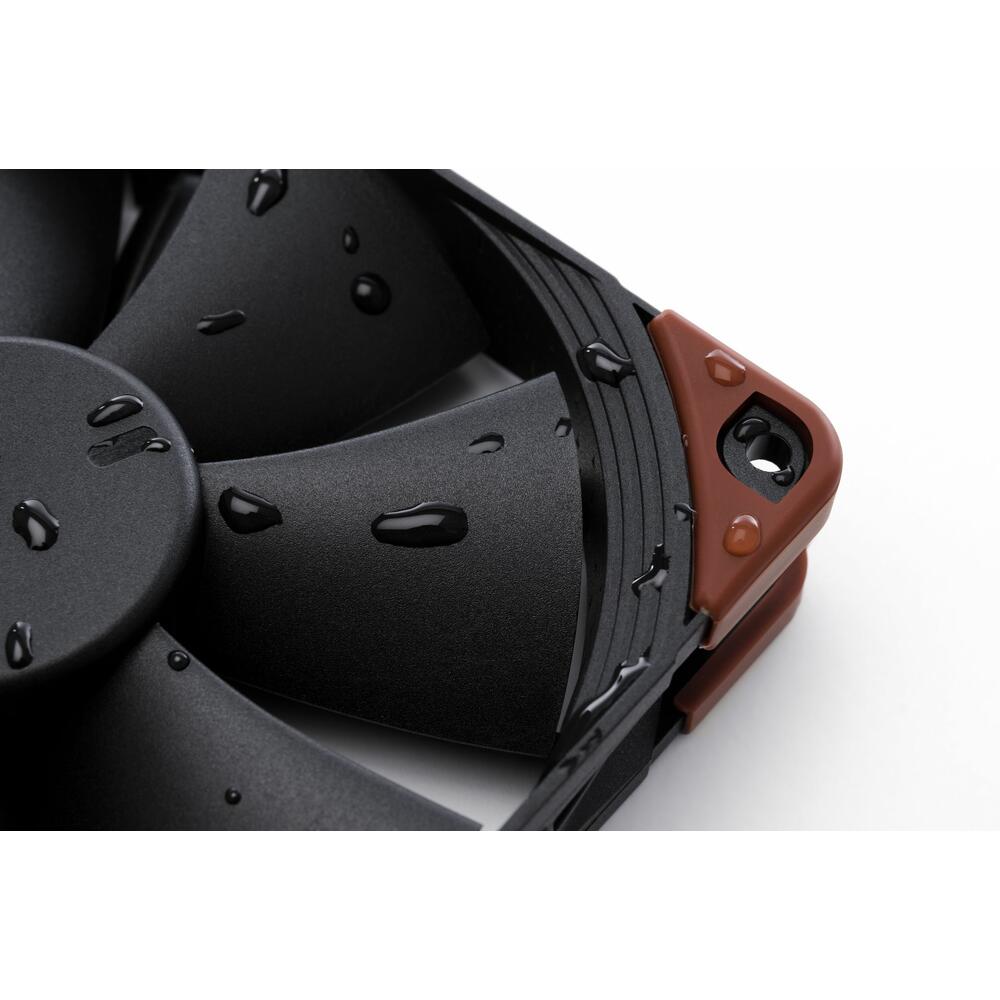

Ingress protection
IP52
Motor type
Three-phase
Rotational speed (+/- 10%)
3000 RPM
Min. rotational speed (PWM, +/-20%)
750 RPM
Airflow
186,7 m³/h
Acoustical noise
43,5 dB(A)
Static pressure
7,63 mm H₂O
Max. input power
3,6 W
Max. input current
0,3 A
Operating voltage
12 V
MTTF
> 150.000 h

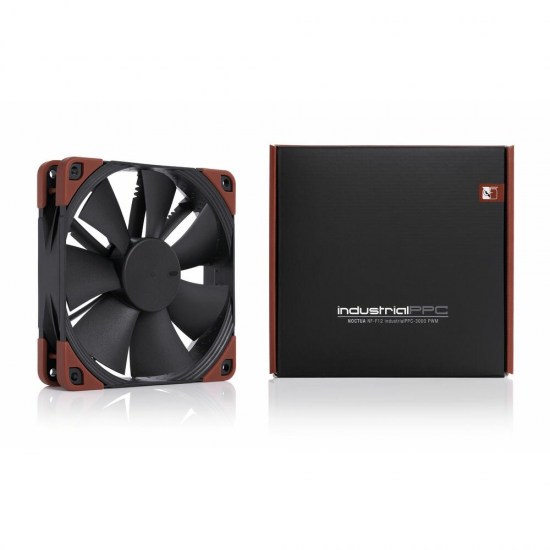

Scope of delivery
Fan
4 Fan Screws
Warranty 6 years
