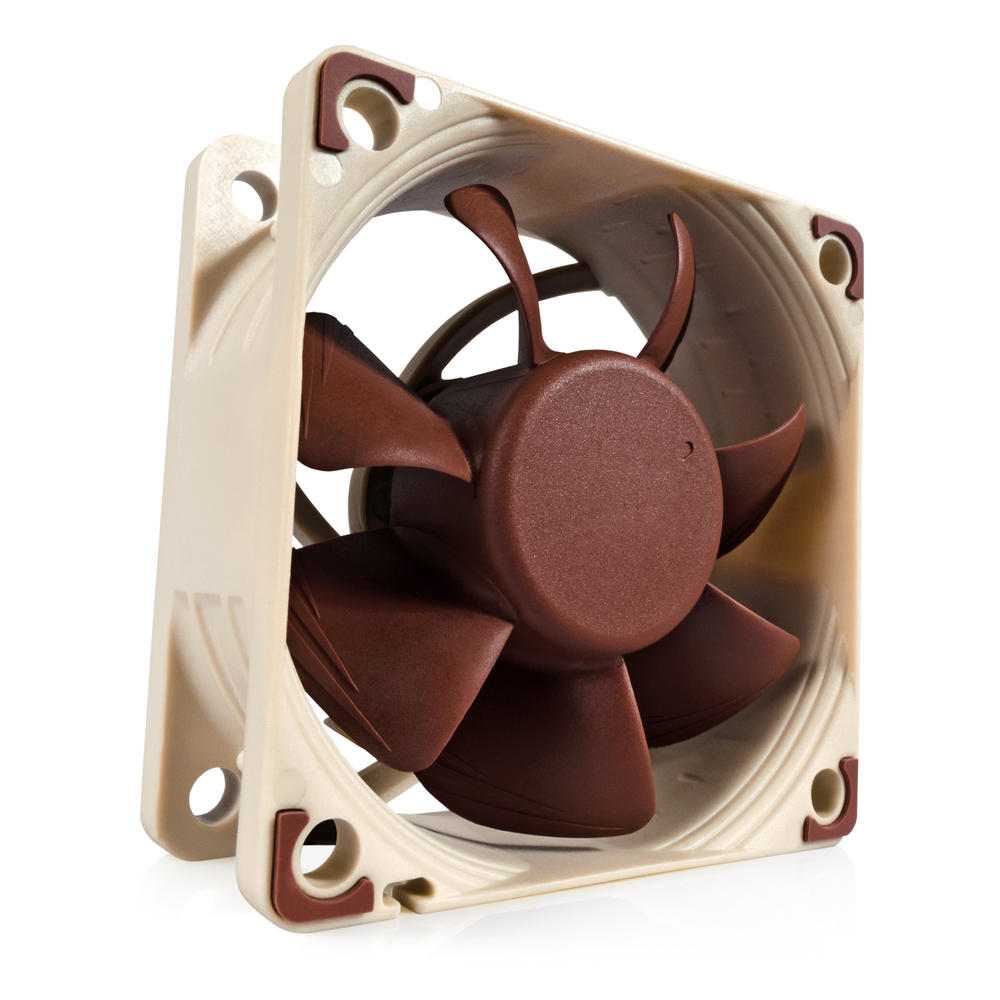

Noctua NF-A6x25 PWM
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2100rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
60x60x25 mm
Mounting hole spacing
50x50 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
3000 RPM
Rotational speed with L.N.A. (+/- 10%)
2300 RPM
Min. rotational speed (PWM, +/-20%)
550 RPM
Airflow
29,2 m³/h
Airflow with L.N.A.
22,6 m³/h
Acoustical noise
19,3 dB(A)
Acoustical noise with L.N.A.
13,7 dB(A)
Static pressure
2,18 mm H₂O
Static pressure with L.N.A.
1,29 mm H₂O
Max. input power
0,96 W
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 h

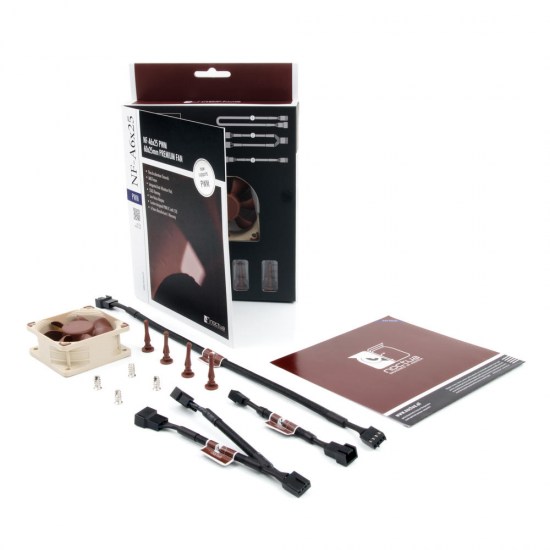

Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty
6 years
