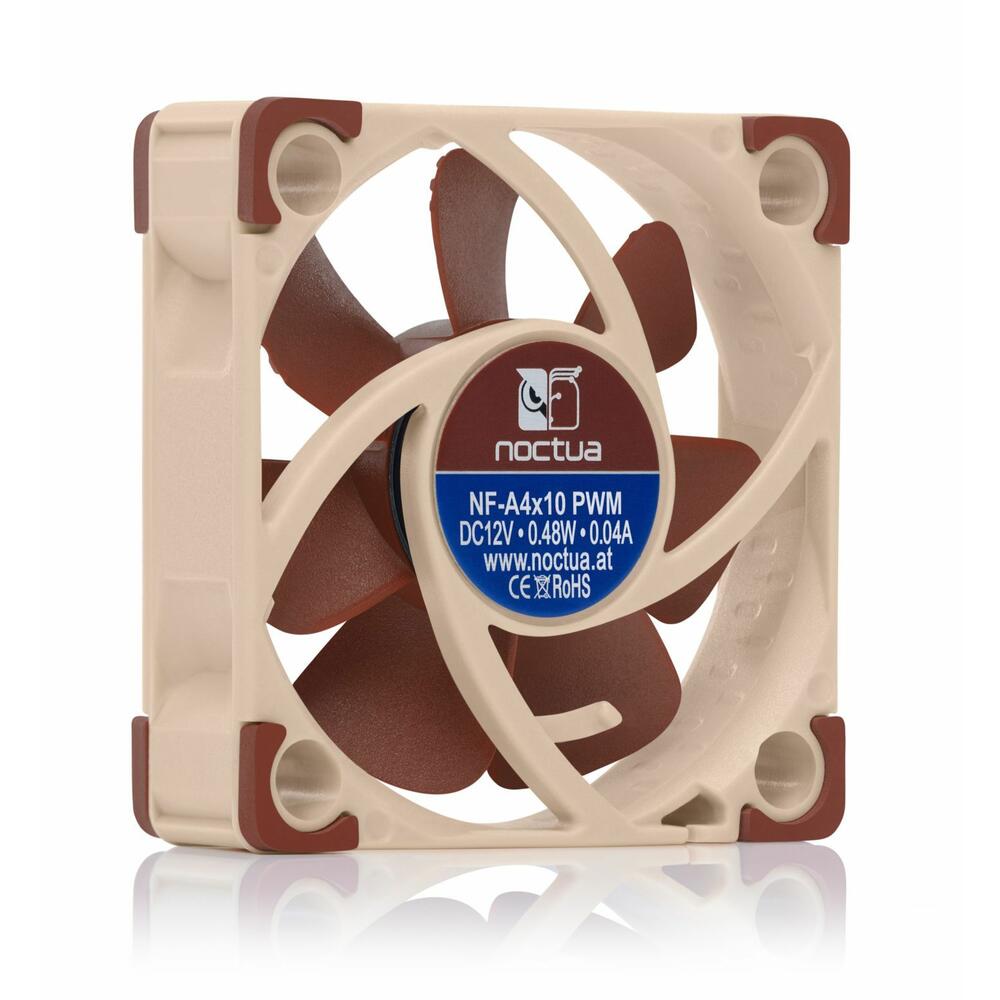

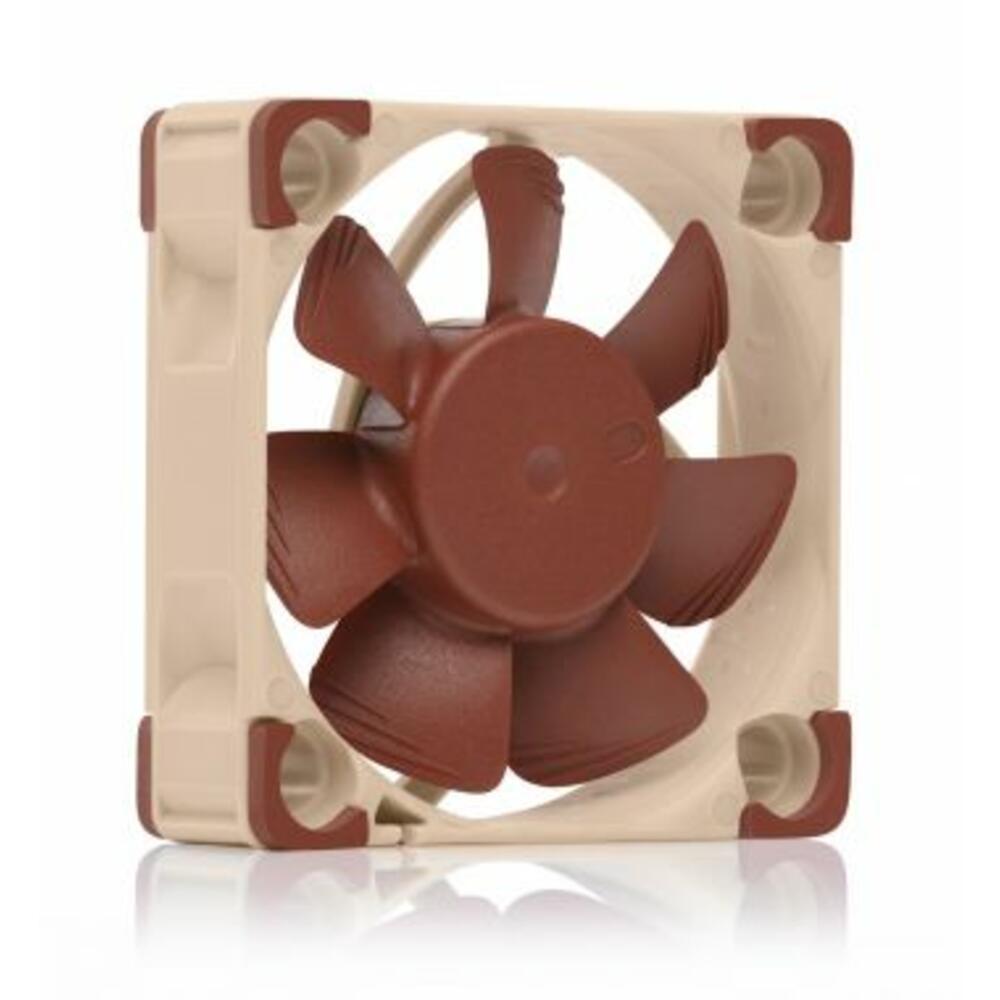

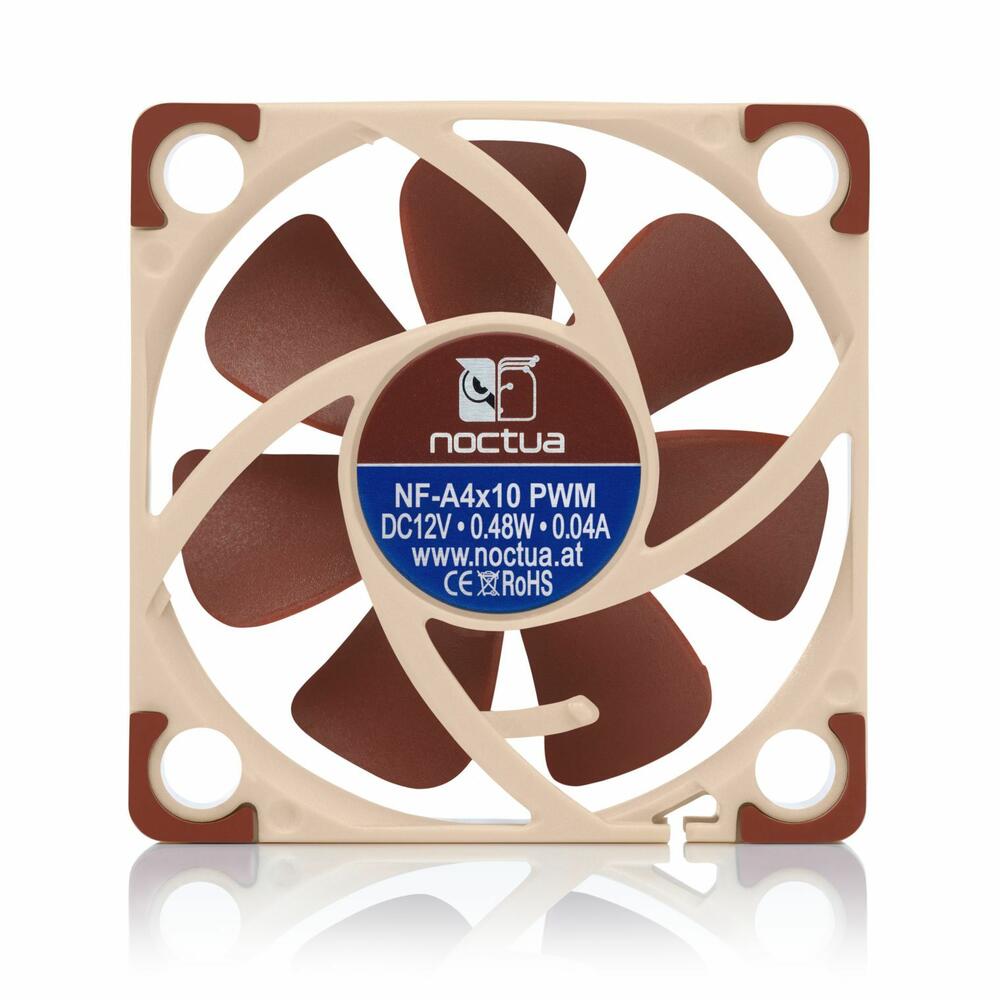

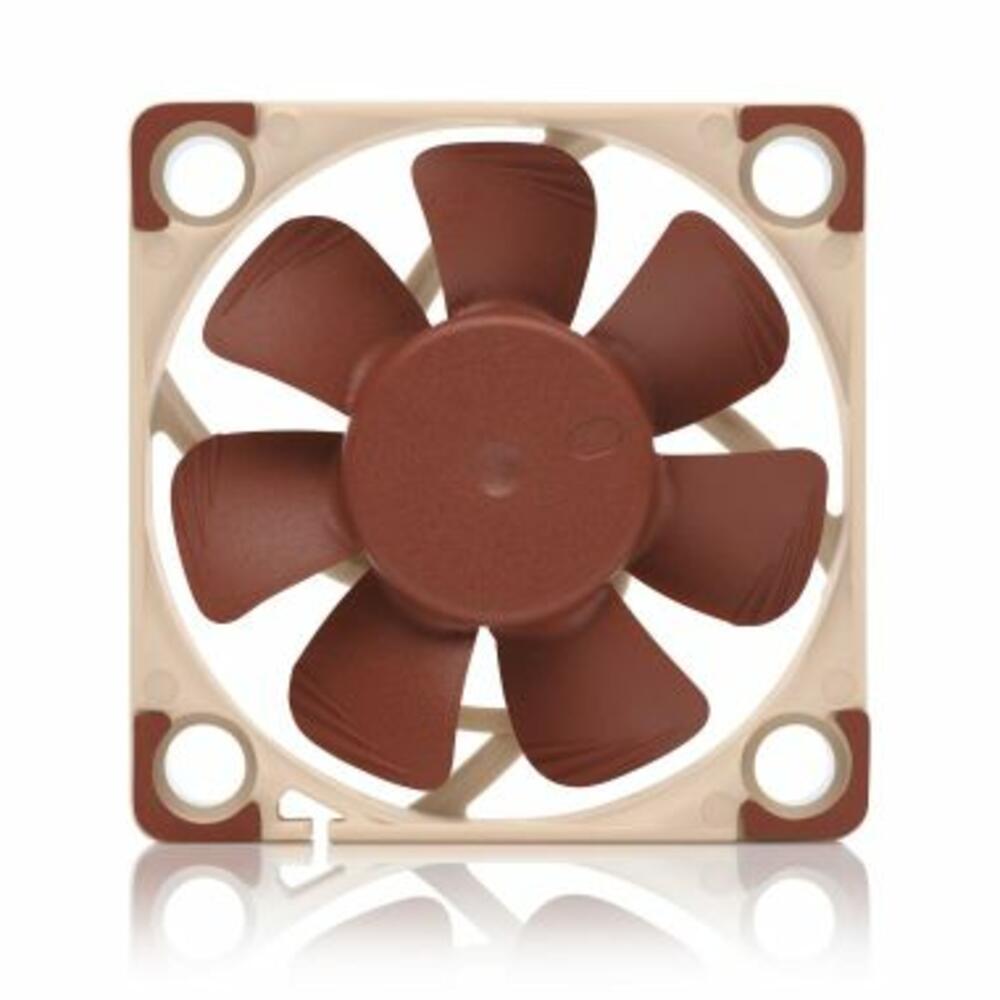

NF-A4x10 PWM
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 is an award-winning, premium-quality quiet fan in size 40x10mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
FAN Specification
Size
40x40x10 mm
Mounting hole spacing
32x32 mm
Connector & pin-configuration

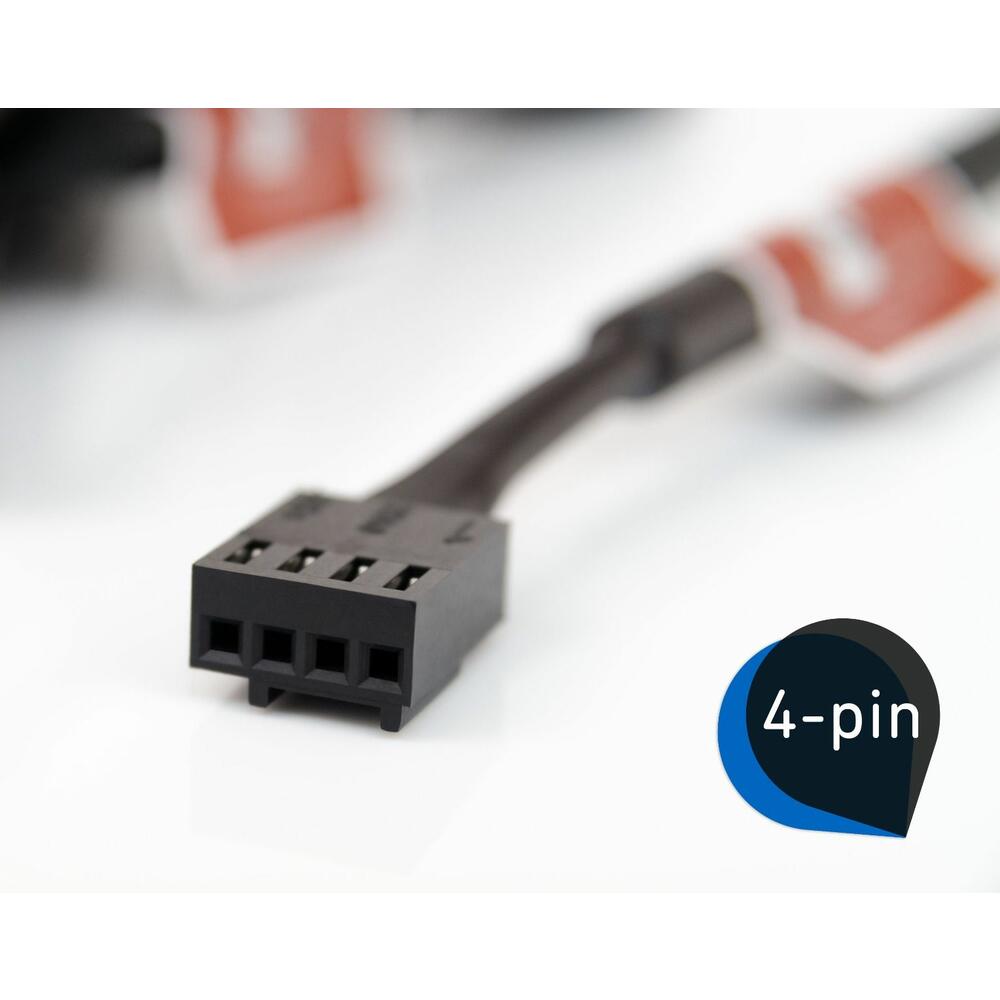

4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
5000 RPM
Rotational speed with L.N.A. (+/- 10%)
3700 RPM
Min. rotational speed (PWM, +/-20%)
1000 RPM
Airflow
8,9 m³/h
Airflow with L.N.A.
6,6 m³/h
Acoustical noise
19,6 dB(A)
Acoustical noise with L.N.A.
12,9 dB(A)
Static pressure
1,95 mm H₂O
Static pressure with L.N.A.
1,21 mm H₂O
Max. input power
0,48 W
Max. input current
0,04 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
30cm Extension Cable
NA-AV3 anti-vibration mounts
OmniJoin Adaptor Set
4-pin y-cable
Low-Noise Adaptor (L.N.A.)
4 Fan Screws
Warranty
6 years
