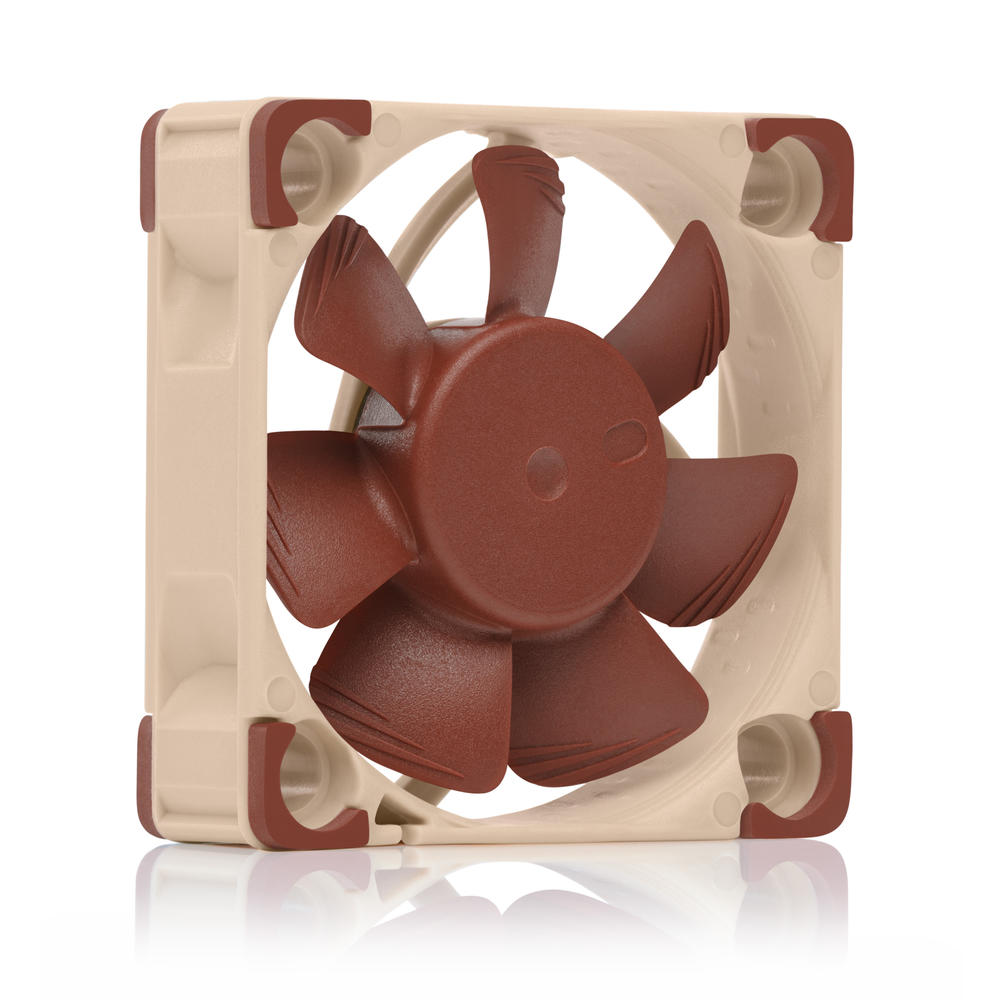

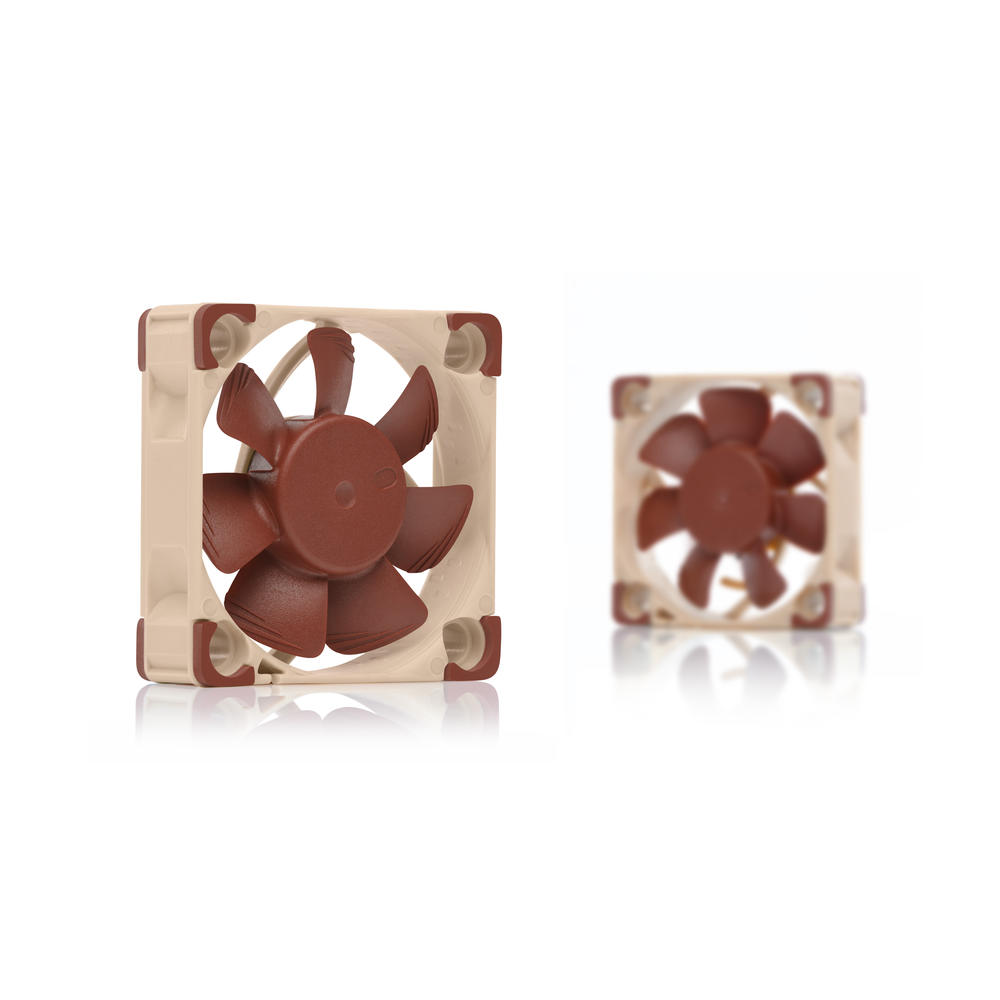

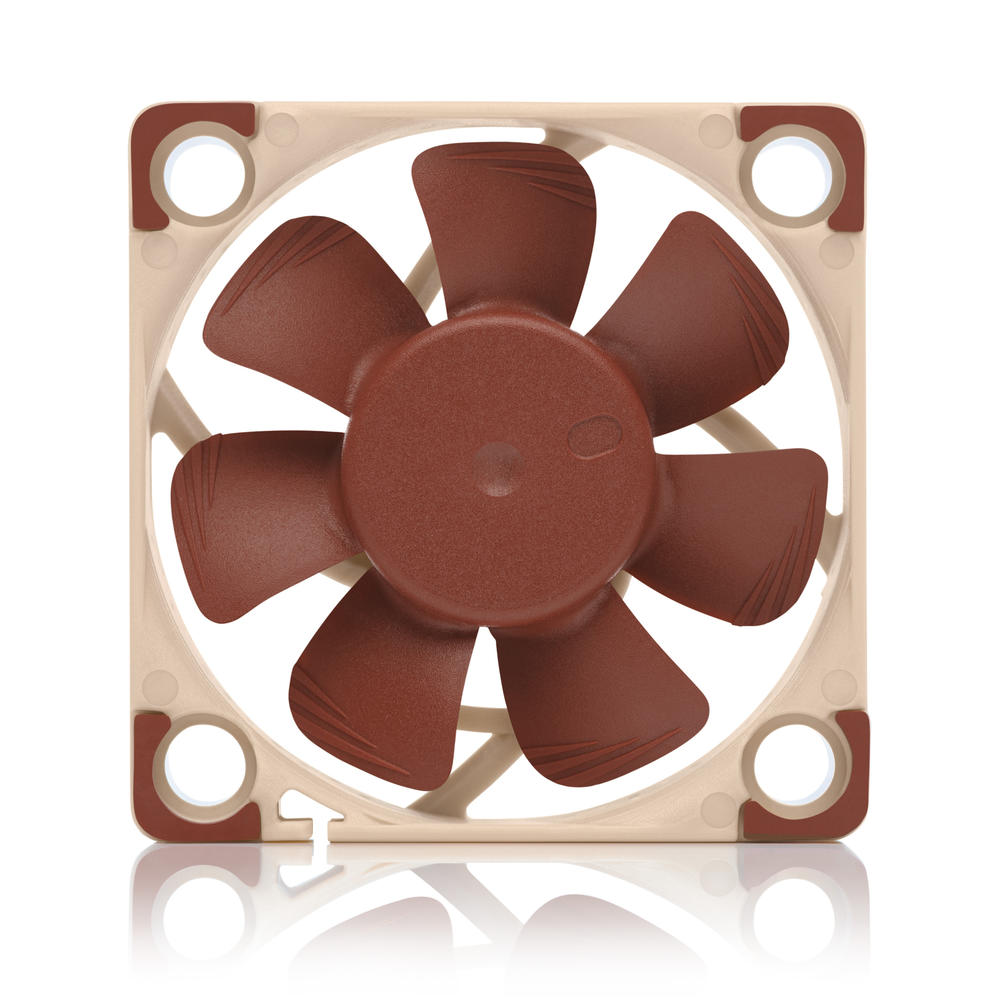

NF-A4x10 5V PWM

Τιμή πώλησης με έκπτωση
Τιμή πώλησης 13,80 €

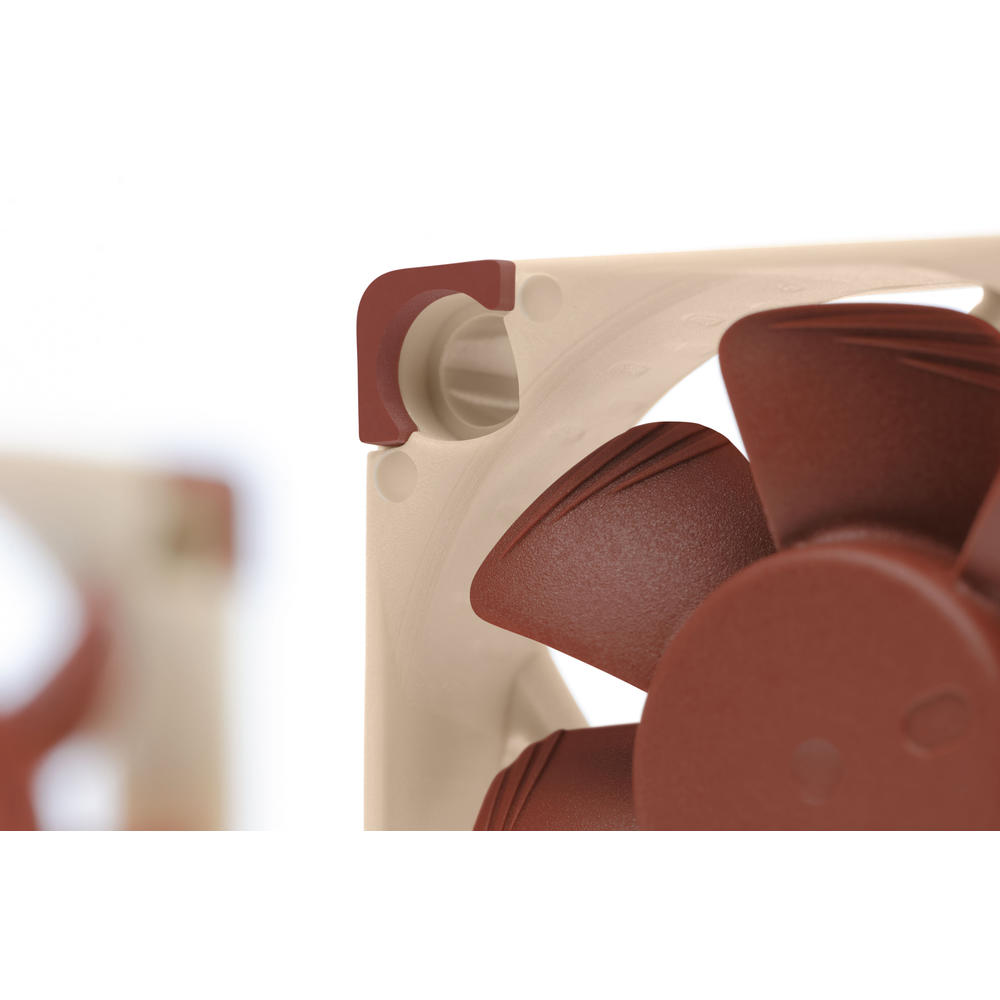

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x10 5V PWM is a PWM enabled 5V variant of Noctua’s award-winning, premium quality quiet 40x10mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin Adaptor Set Adaptor Set and 6 years manufacturer’s warranty, the NF-A4x10 5V PWM is a premium choice for demanding 5V applications that require PWM control.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

FAN Specification
Size
40x40x10 mm
Mounting hole spacing
32x32 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
5000 RPM
Min. rotational speed (PWM, +/-20%)
1000 RPM
Airflow
8,9 m³/h
Acoustical noise
19,6 dB(A)
Static pressure
1,95 mm H₂O
Max. input power
0,35 W
Max. input current
0,07 A
Operating voltage
5 V
MTTF
> 150.000 h
Scope of delivery

30cm extension cable
NA-AV3 anti-vibration mounts
USB power adaptor cable
OmniJoin adaptor set
Fan screws

Warranty
6 years
