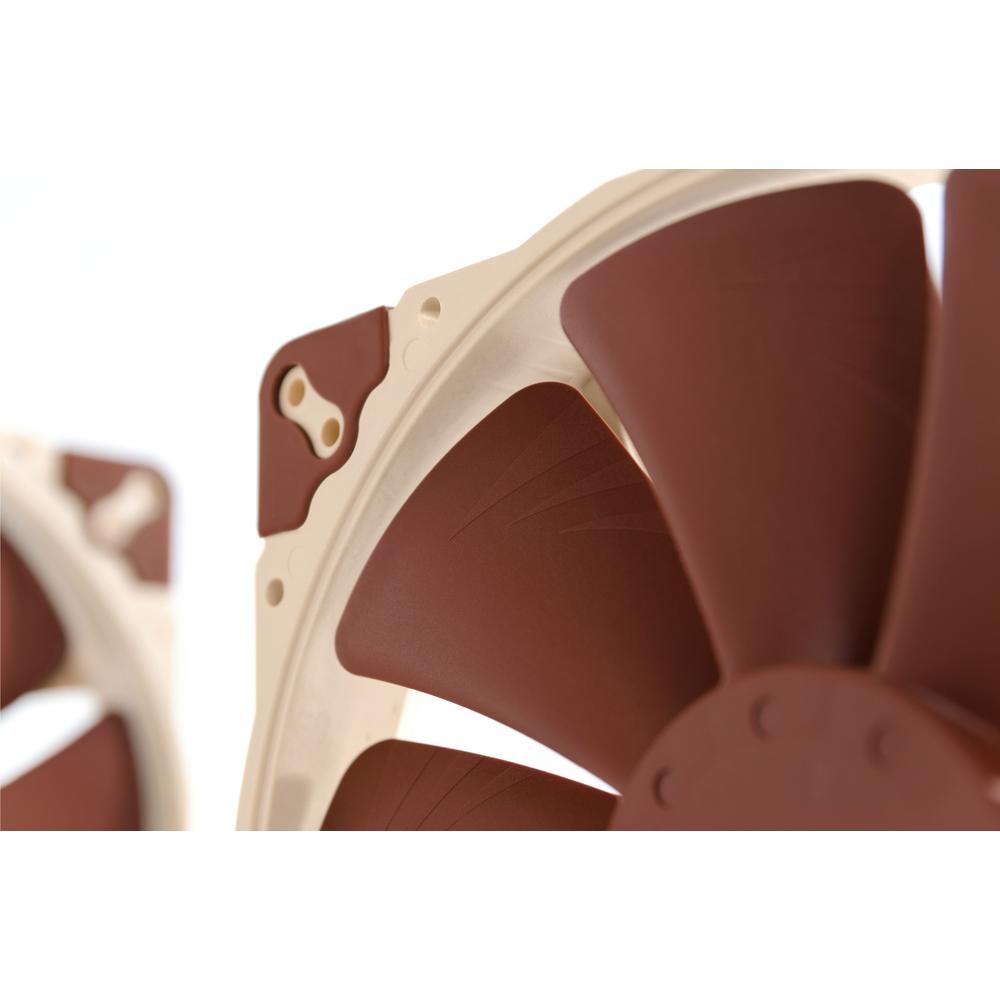

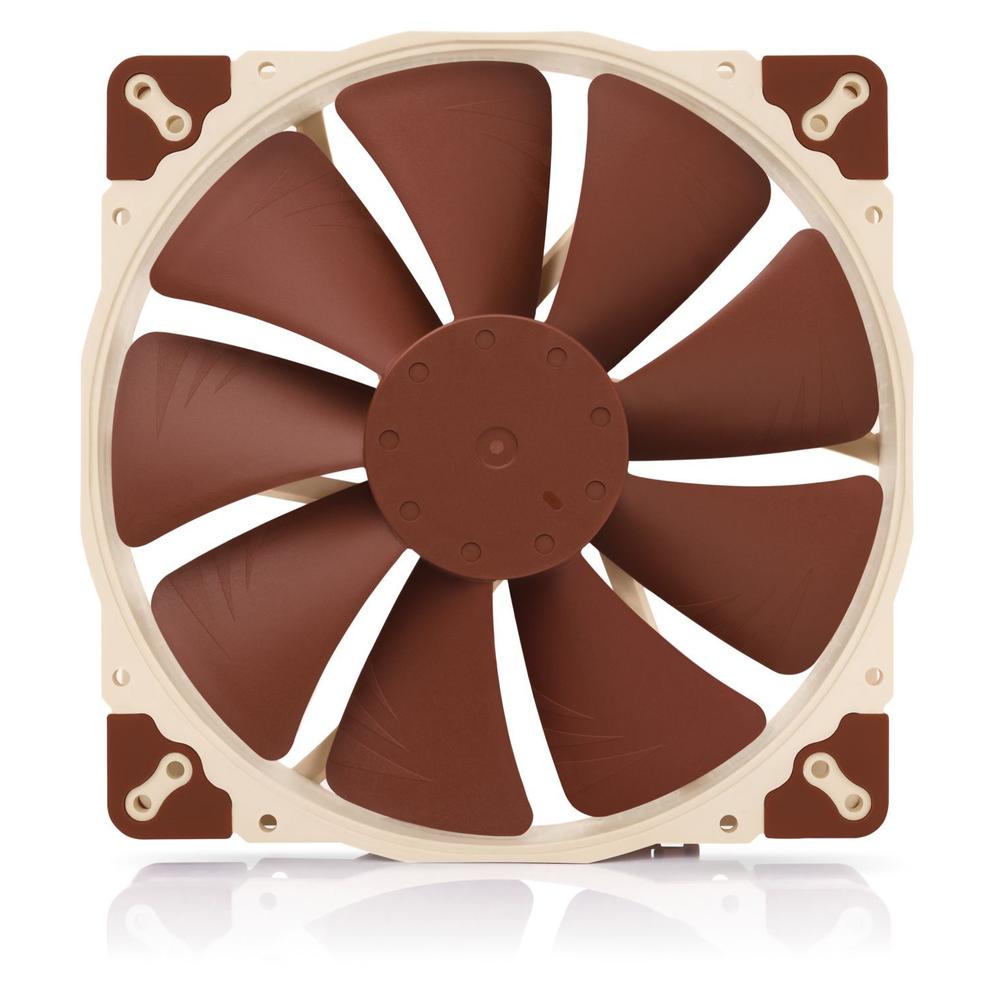

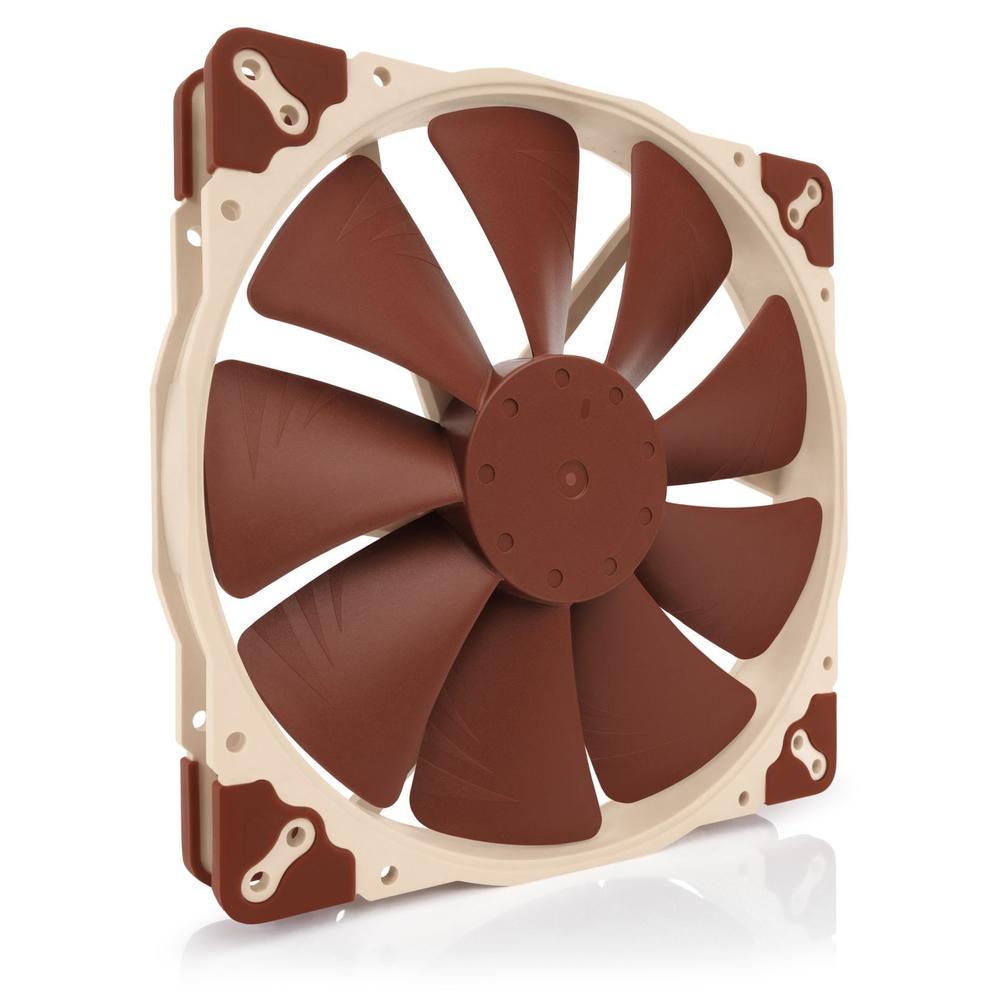

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctua’s award-winning A-series to the increasingly popular 20cm form factor. The PWM version uses Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers, which allows it to strike a perfect balance between quietness and ventilation performance in each given situation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make the NF-A20 an elite choice for the highest demands.
FAN Specification
Size
200x200x30 mm
Mounting hole spacing
154x154, 110x180, 170x170 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
800 RPM
Rotational speed with L.N.A. (+/- 10%)
550 RPM
Min. rotational speed (PWM, +/-20%)
350 RPM
Airflow
146,9 m³/h
Airflow with L.N.A.
100,8 m³/h
Acoustical noise
18,1 dB(A)
Acoustical noise with L.N.A.
10,7 dB(A)
Static pressure
1,08 mm H₂O
Static pressure with L.N.A.
0,51 mm H₂O
Max. input power
0,96 W
Max. input current
0,08 A
Operating voltage
12 V
Voltage PWM signal
5 V
MTTF
> 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-pin y-cable
30cm extension cable
NA-AV3 anti-vibration mounts
NA-AV4 anti-vibration mounts
Fan screws
Warranty
6 years
