NF-A20 PWM black.swap edition

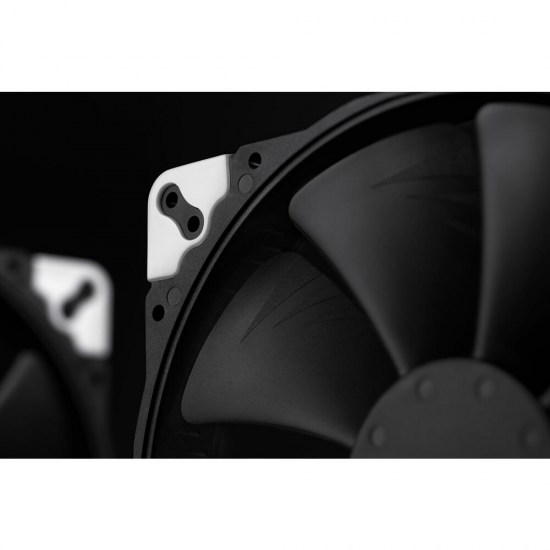

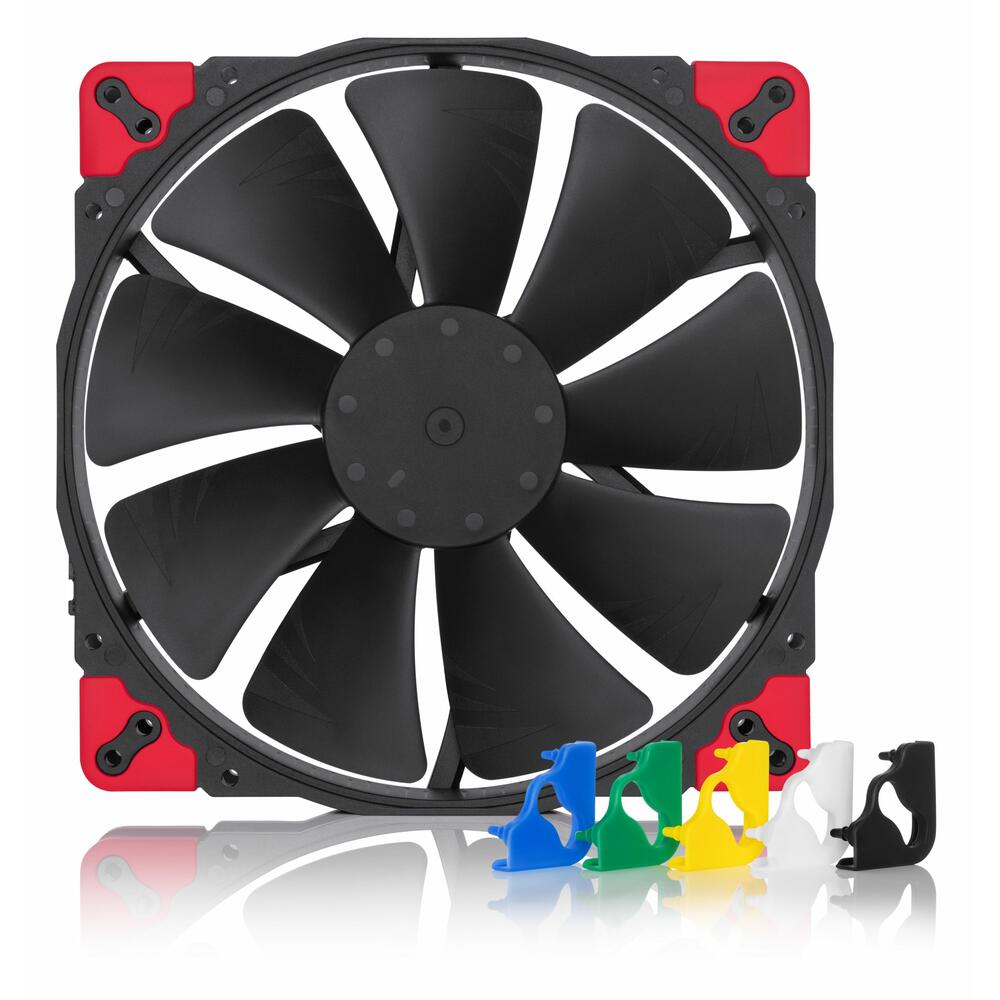

Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A20 has established itself as a default choice when it comes to premium-quality 200mm fans. The chromax.black.swap edition combines the NF-A20’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A20 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Product Details
Notes and warnings
Please refer to our case compatibility list for detailed compatibility information.
FAN Specification
Size
200x200x30 mm
Mounting hole spacing
154x154, 110x180, 170x170 mm
Connector & pin-configuration
4-pin PWM
Cable length
1cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
800 RPM
Min. rotational speed (PWM, +/-20%)
350 RPM
Airflow
146,9 m³/h
Acoustical noise
18,1 dB(A)
Static pressure
1,08 mm H₂O
Max. input power
0,96 W
Max. input current
0,08 A
Operating voltage
12 V
Voltage PWM signal
5 V
MTTF
> 150.000 h

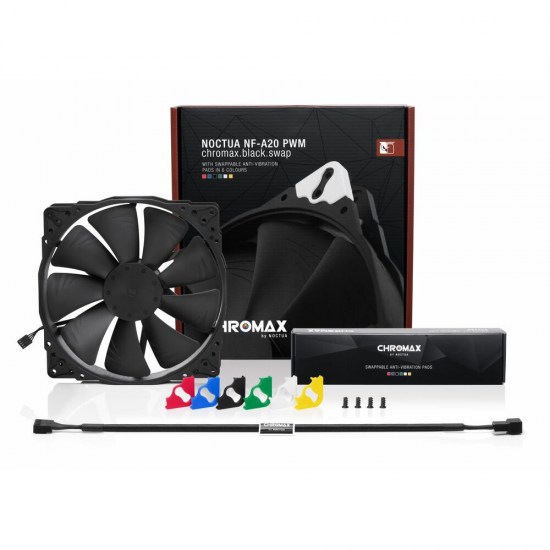

Scope of delivery

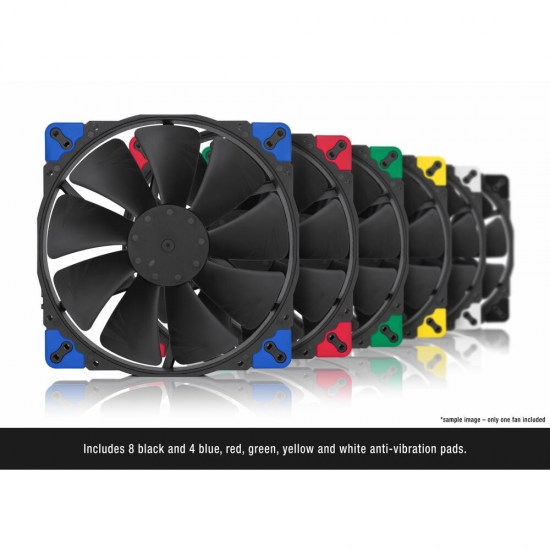

8x NA-AVP6 chromax.black anti-vibration pads
4x NA-AVP6 chromax.blue anti-vibration pads
4x NA-AVP6 chromax.green anti-vibration pads
4x NA-AVP6 chromax.red anti-vibration pads
4x NA-AVP6 chromax.white anti-vibration pads
4x NA-AVP6 chromax.yellow anti-vibration pads
4x fan screws
Warranty
6 years
