NF-A15 PWM

Τιμή πώλησης με έκπτωση
Τιμή πώλησης 23,00 €

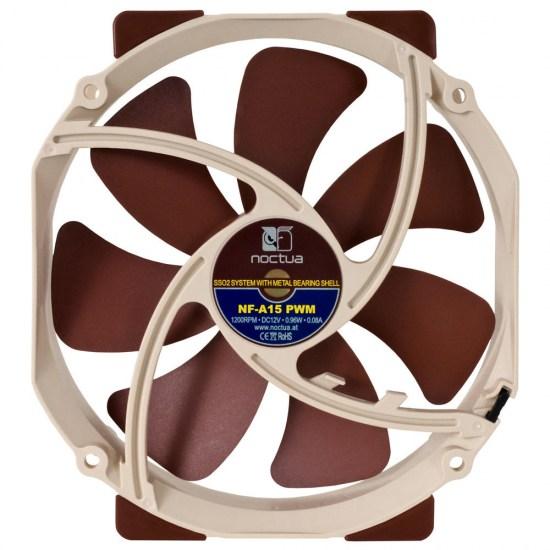

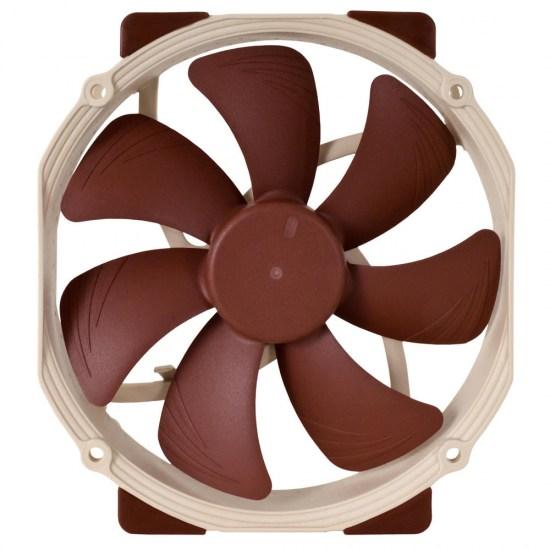

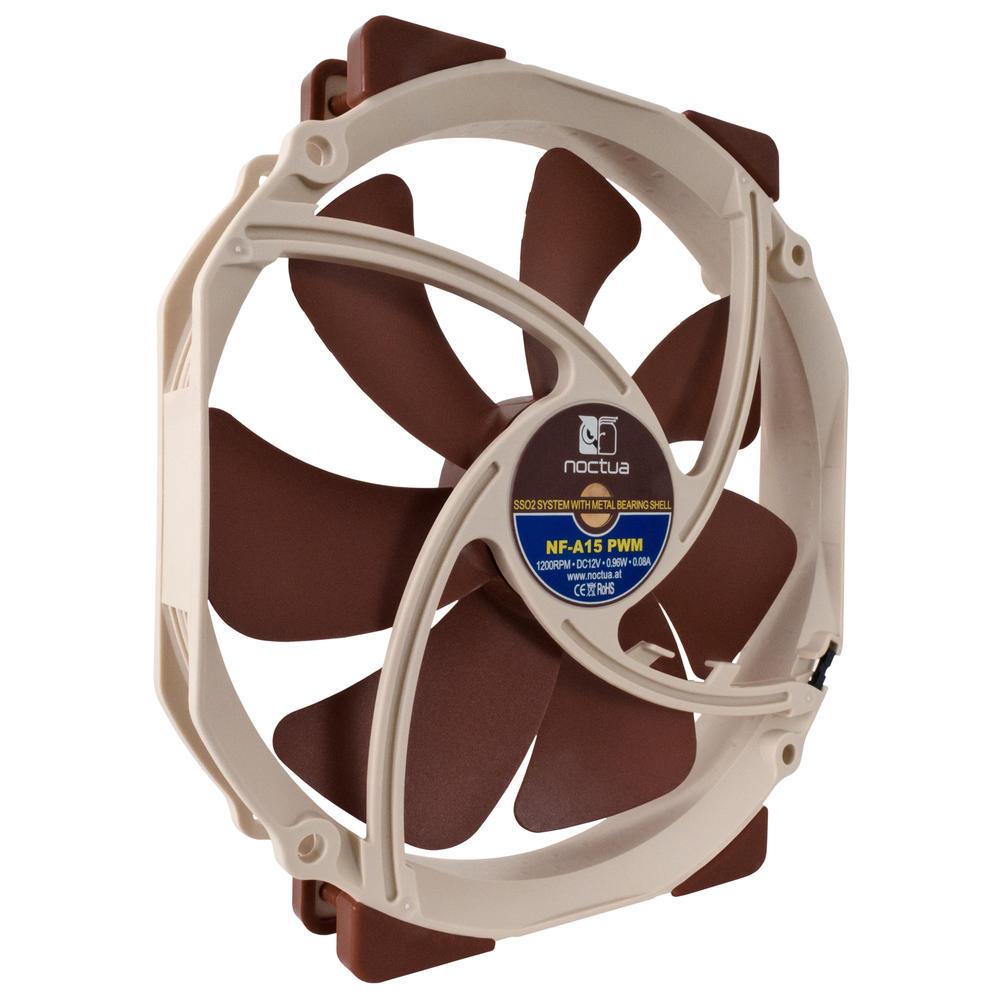

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

FAN Specification
Size
140x150x25 mm
Mounting hole spacing
105x105 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
1200 RPM
Rotational speed with L.N.A. (+/- 10%)
900 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
Airflow
115,5 m³/h
Airflow with L.N.A.
88,7 m³/h
Acoustical noise
19,2 dB(A)
Static pressure
1,51 mm H₂O
Static pressure with L.N.A.
0,89 mm H₂O
Max. input power
0,96 W
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 h

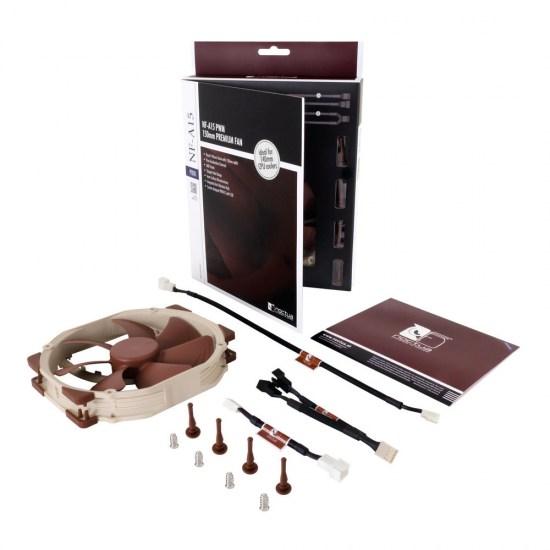

Scope of delivery

Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

Warranty
6 years
