NF-A14 INDUSTRIALPPC-3000 PWM

SKU: NF-A14 INDUSTRIALPPC-3000 PWM
Τιμή πώλησης με έκπτωση
Τιμή πώλησης 32,90 €

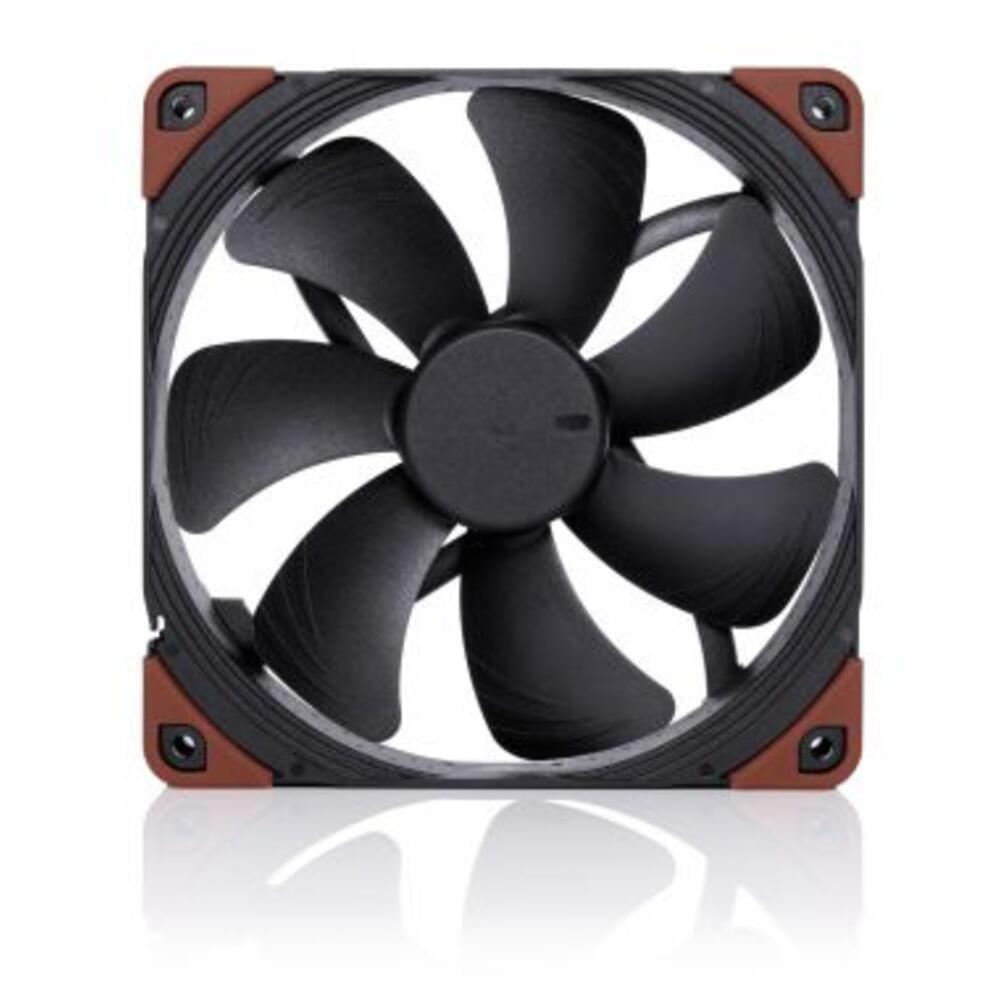

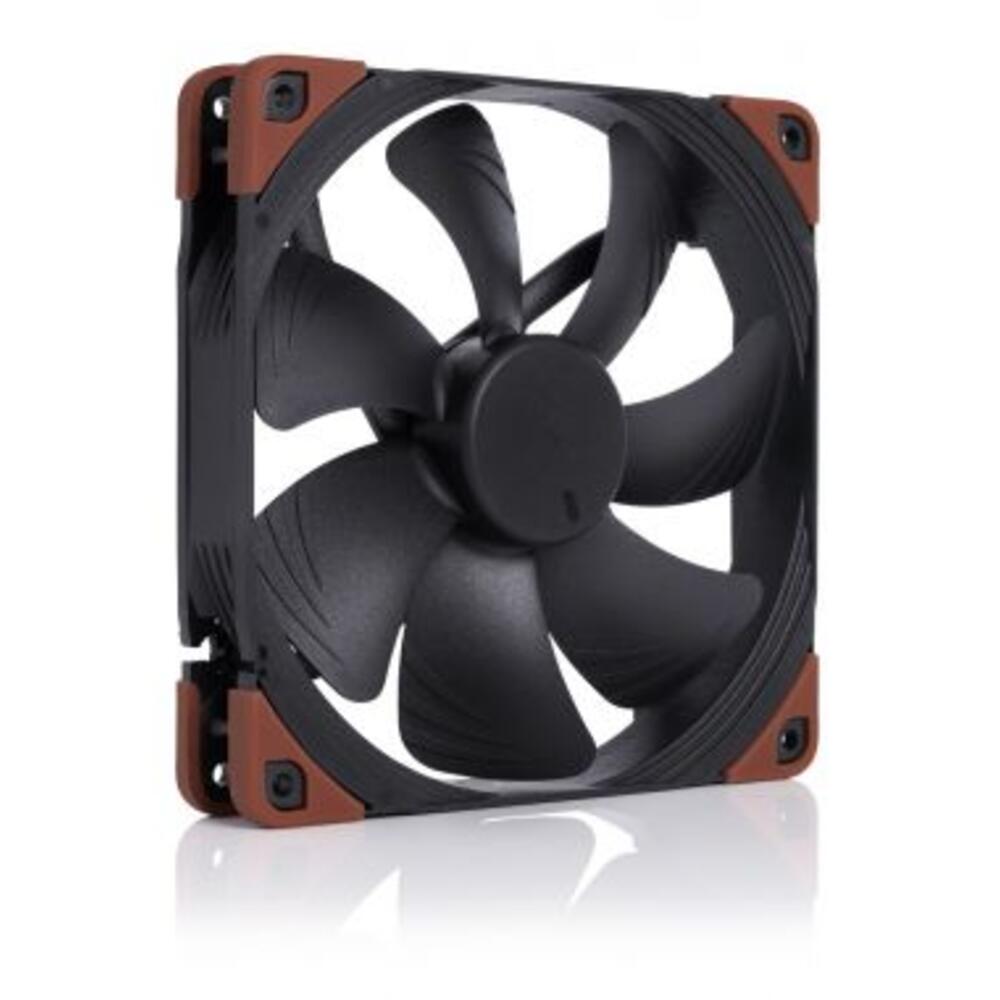

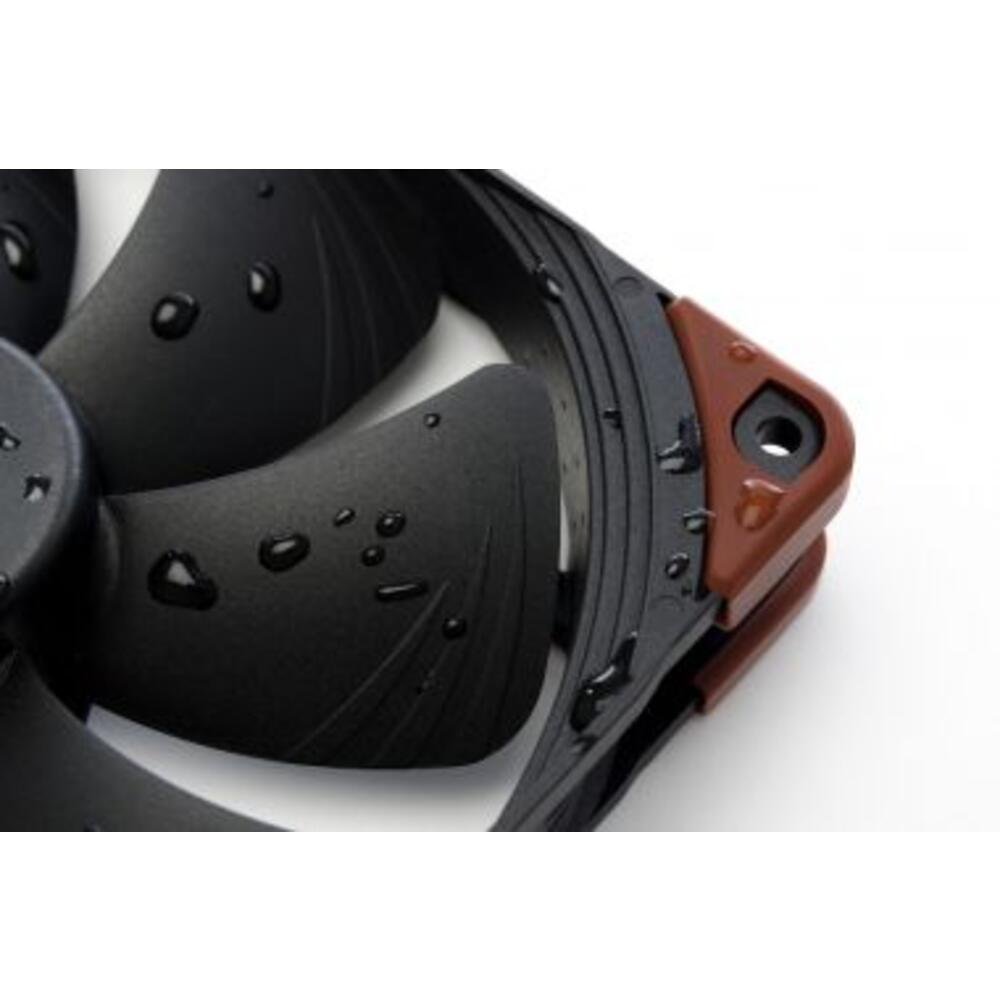

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Product Details
Notes and warnings
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead.

FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO
Material Fibre-glass reinforced polyamide
Ingress protection IP52
Motor type Three-phase
Rotational speed (+/- 10%) 3000 RPM
Min. rotational speed @ 20% PWM (+/-20%) 800 RPM
Airflow 269,3 m³/h
Acoustical noise 41,3 dB(A)
Static pressure 6,58 mm H₂O
Input power (max.) 6,6 W
Input current (max.) 0,55 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
Fan
4 Fan Screws

Warranty 6 years
