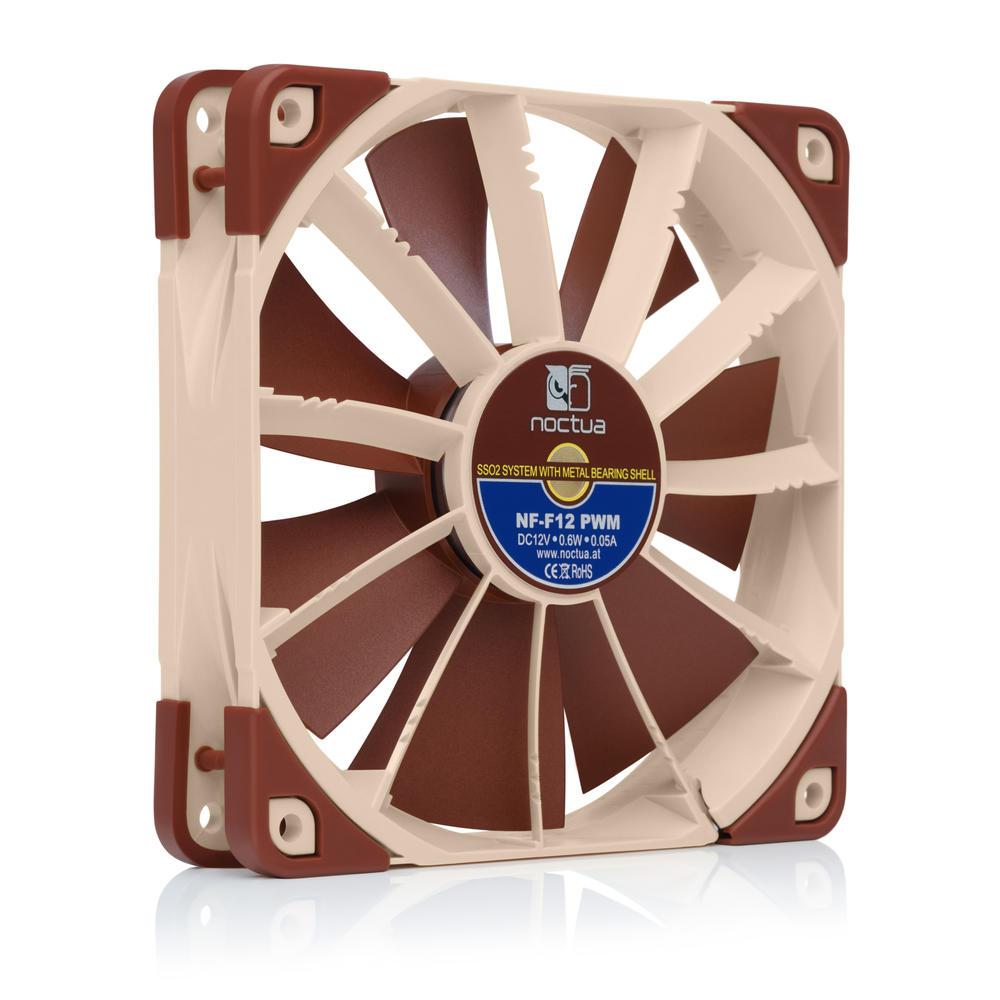

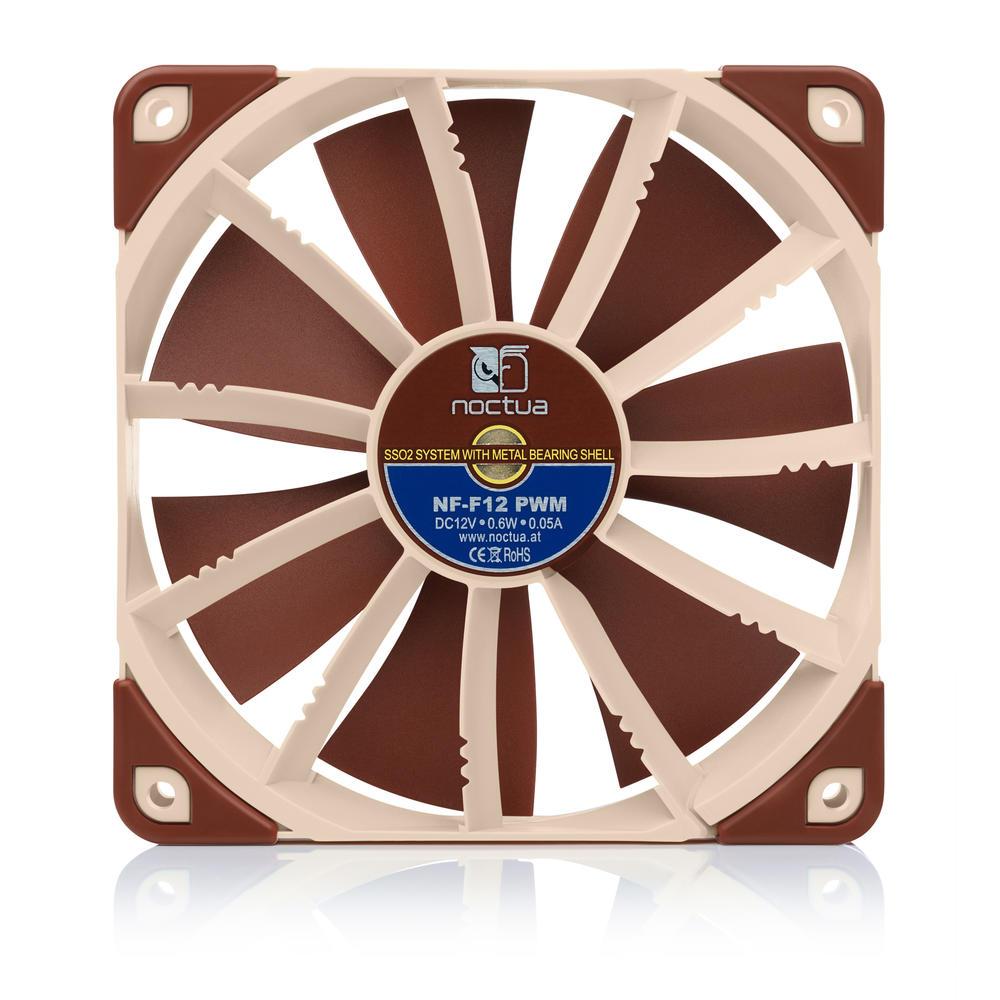

NF-F12 PWM

Τιμή πώλησης με έκπτωση
Τιμή πώλησης 19,90 €

Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
Heptaperf™
Frame technology
Focused Flow™
Rotational speed (+/- 10%)
1500 RPM
Rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
Airflow
93,4 m³/h
Airflow with L.N.A.
74,3 m³/h
Acoustical noise
22,4 dB(A)
Acoustical noise with L.N.A.
18,6 dB(A)
Static pressure
2,61 mm H₂O
Static pressure with L.N.A.
1,83 mm H₂O
Max. input power
0,6 W
Max. input current
0,05 A
Operating voltage
12 V
MTTF
> 150.000 h

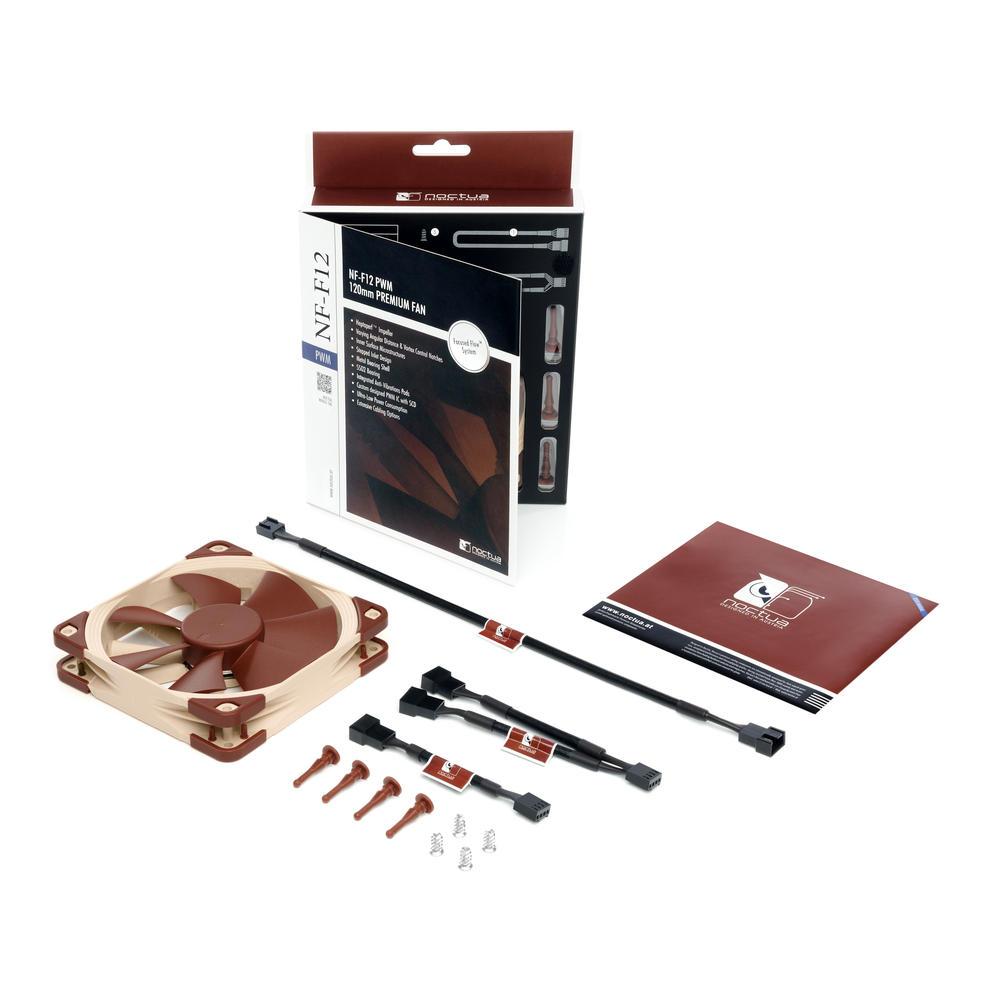

Scope of delivery

Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

Warranty
6 years
