Noctua NH-L9a-AM4

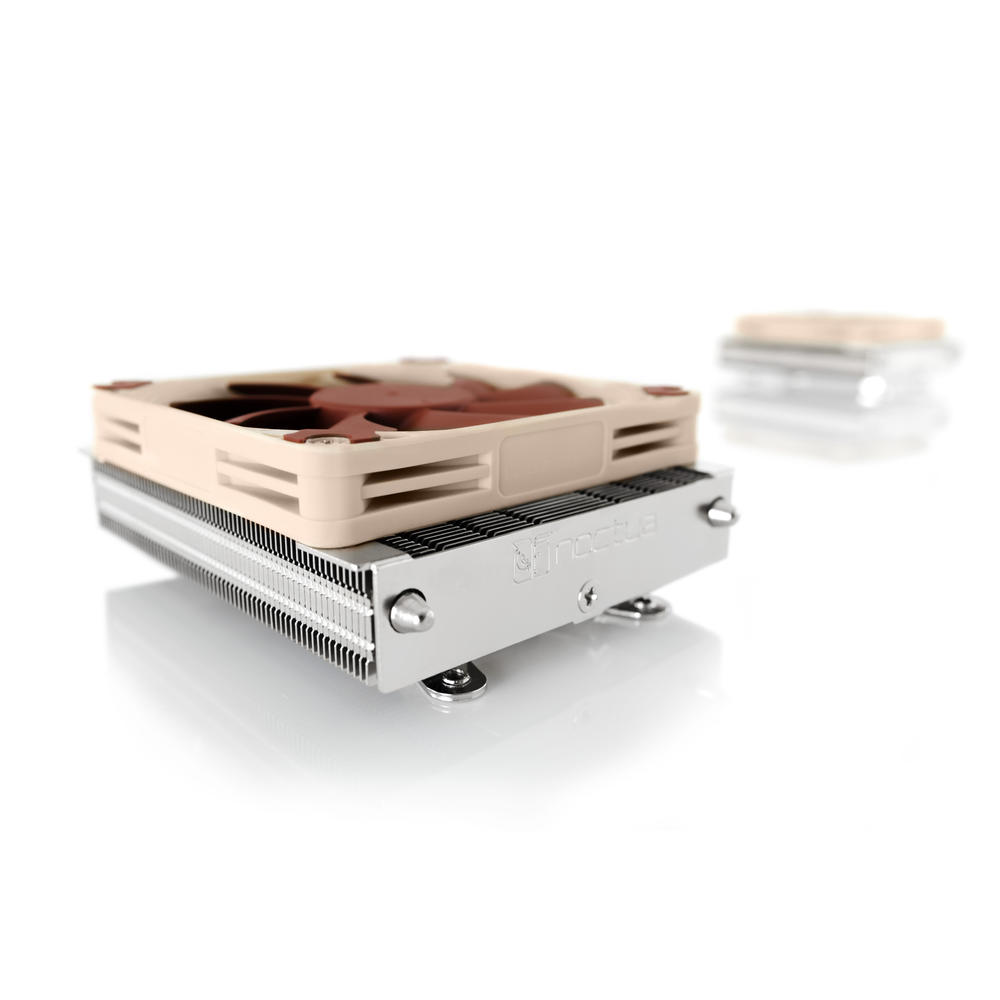

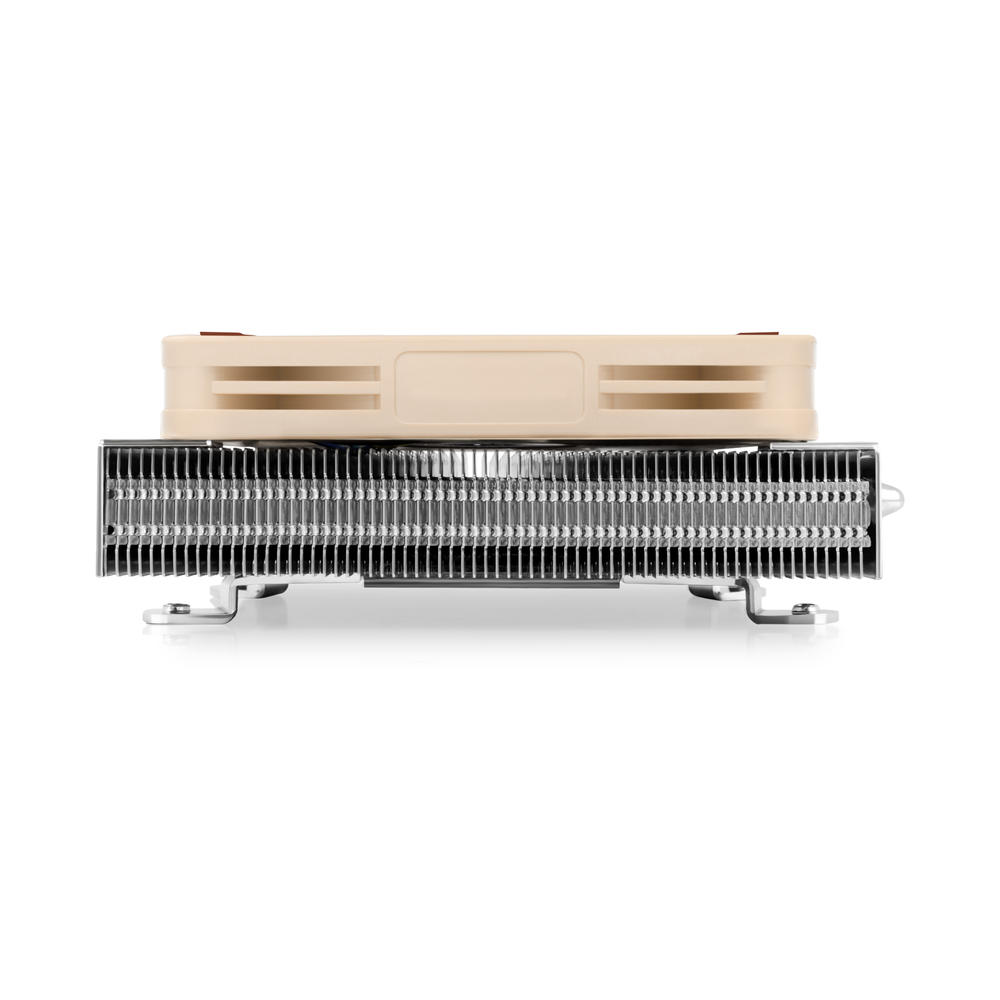

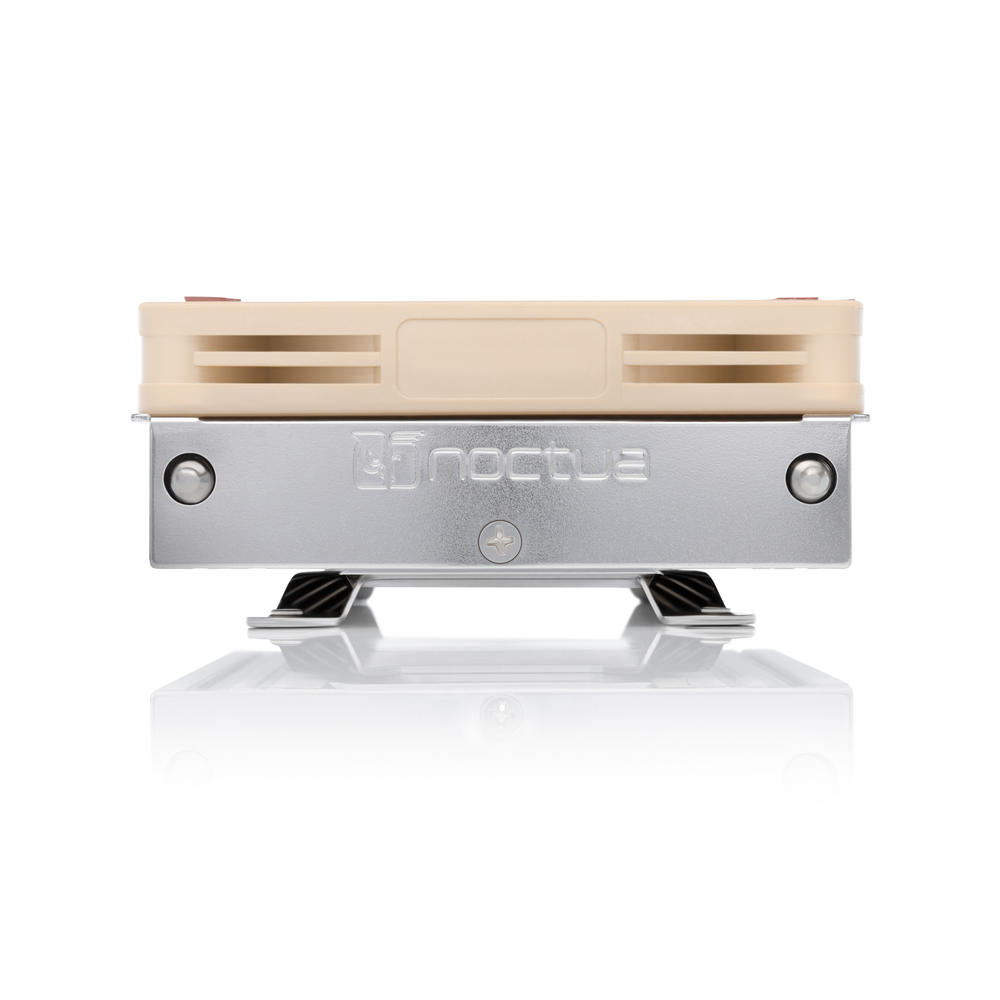

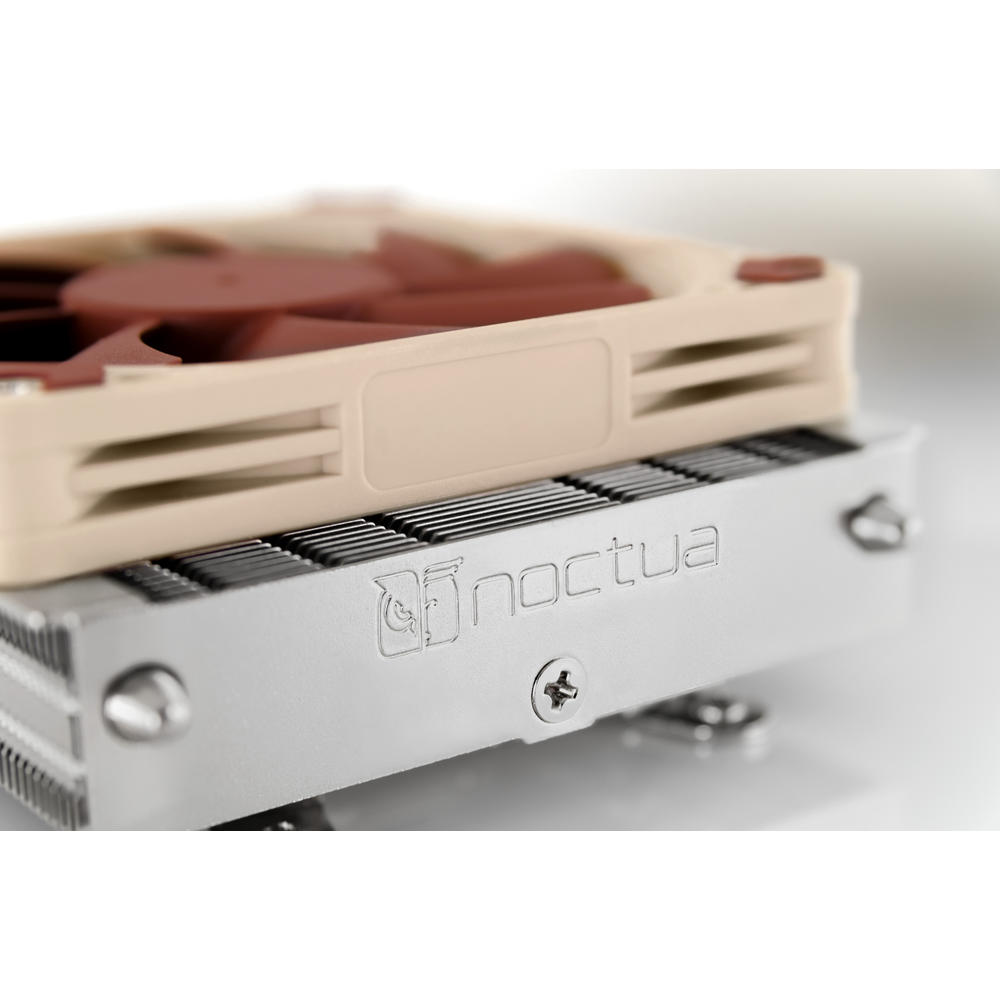

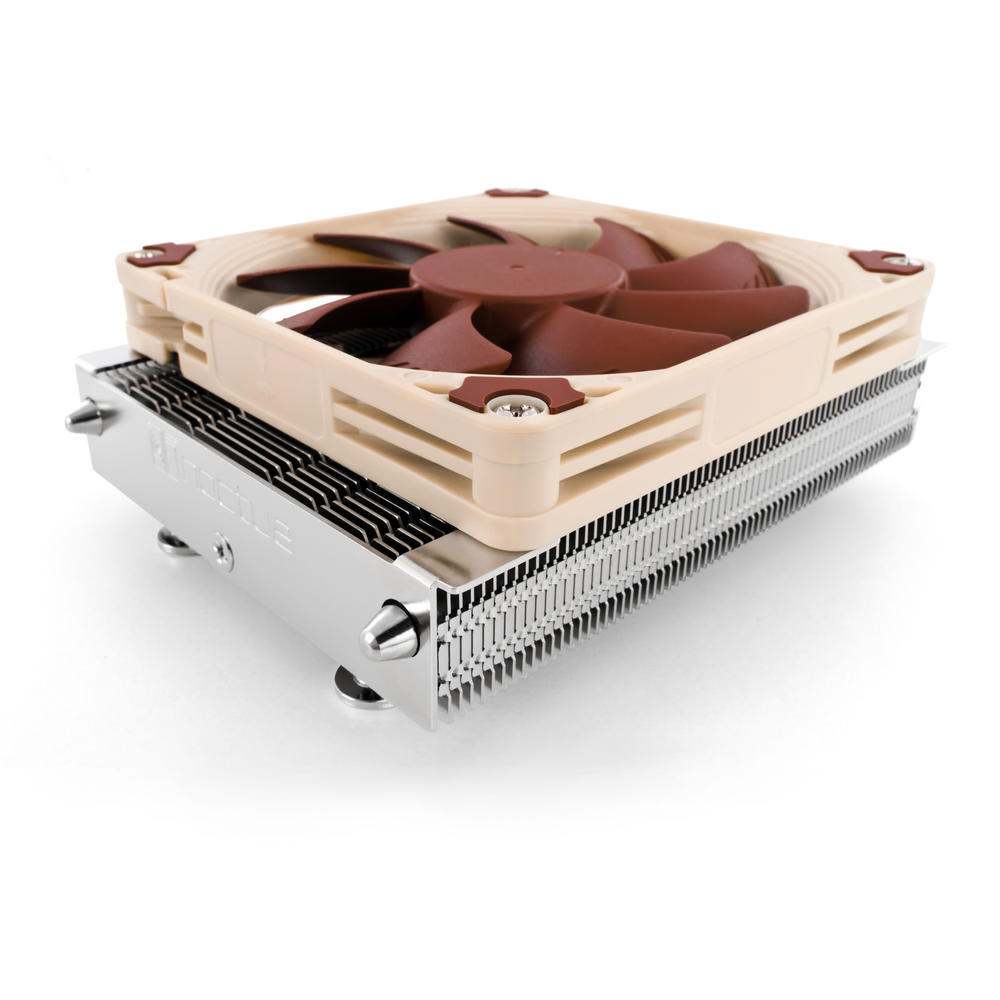

The NH-L9a is a premium quality quiet CPU cooler for AMD based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9a is ideal for extremely slim cases and due to its 92x114mm footprint, it provides excellent compatibility with tall RAM modules and other components on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for AM3+/FM1/FM2/FM2+ makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9a runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.
General
Notes and warnings
The NH-L9a is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and only recommended for CPUs with up to 65W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L9a is recommended for your CPU.
Cooler Specification
Socket compatibility
AMD AM4
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92 mm
Weight (without fan)
390 g
Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92 mm
Weight (with fan)
465 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see TDP guide
Fan compatibility
92x92x14mm, 92x92x25mm

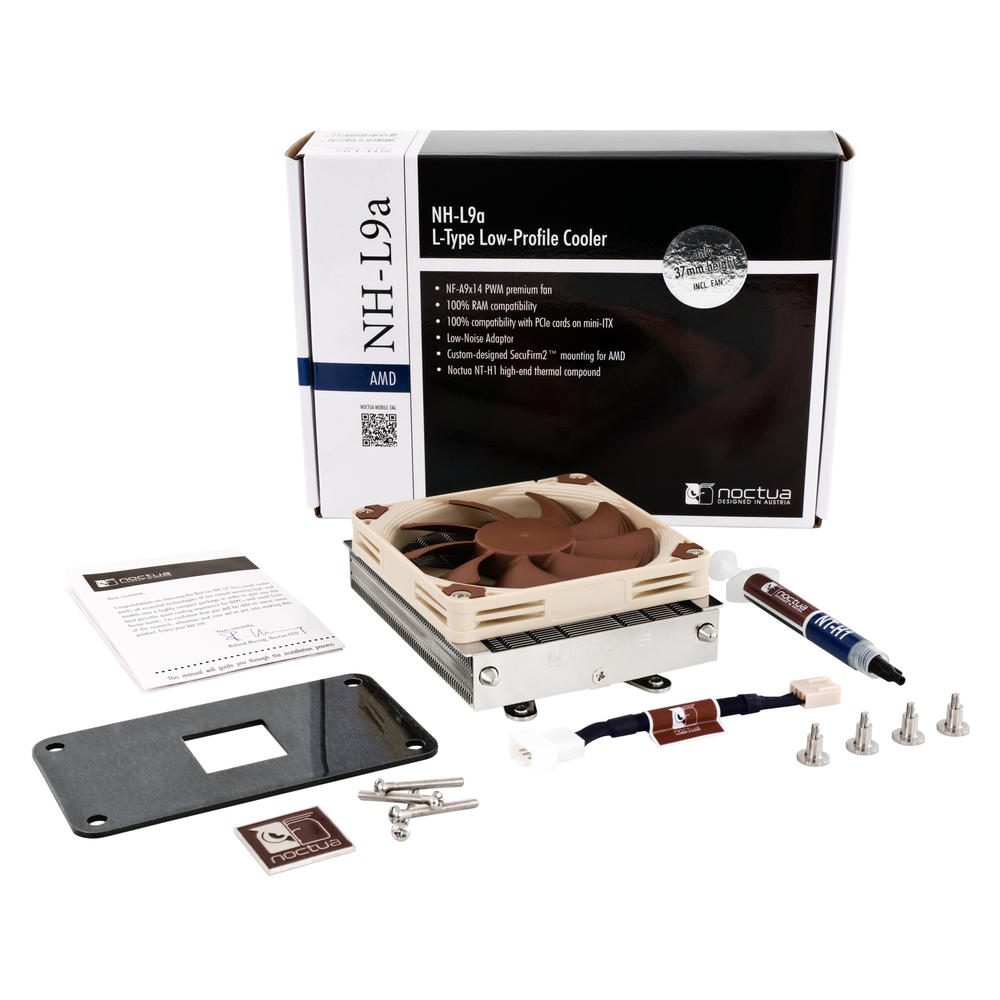

Scope of delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Screws for 92x92x25mm fans
Noctua Metal Case-Badge
Warranty
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed (PWM, +/-20%)
600 RPM
Max. airflow
57,5 m³/h
Max. airflow with L.N.A.
40,8 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
