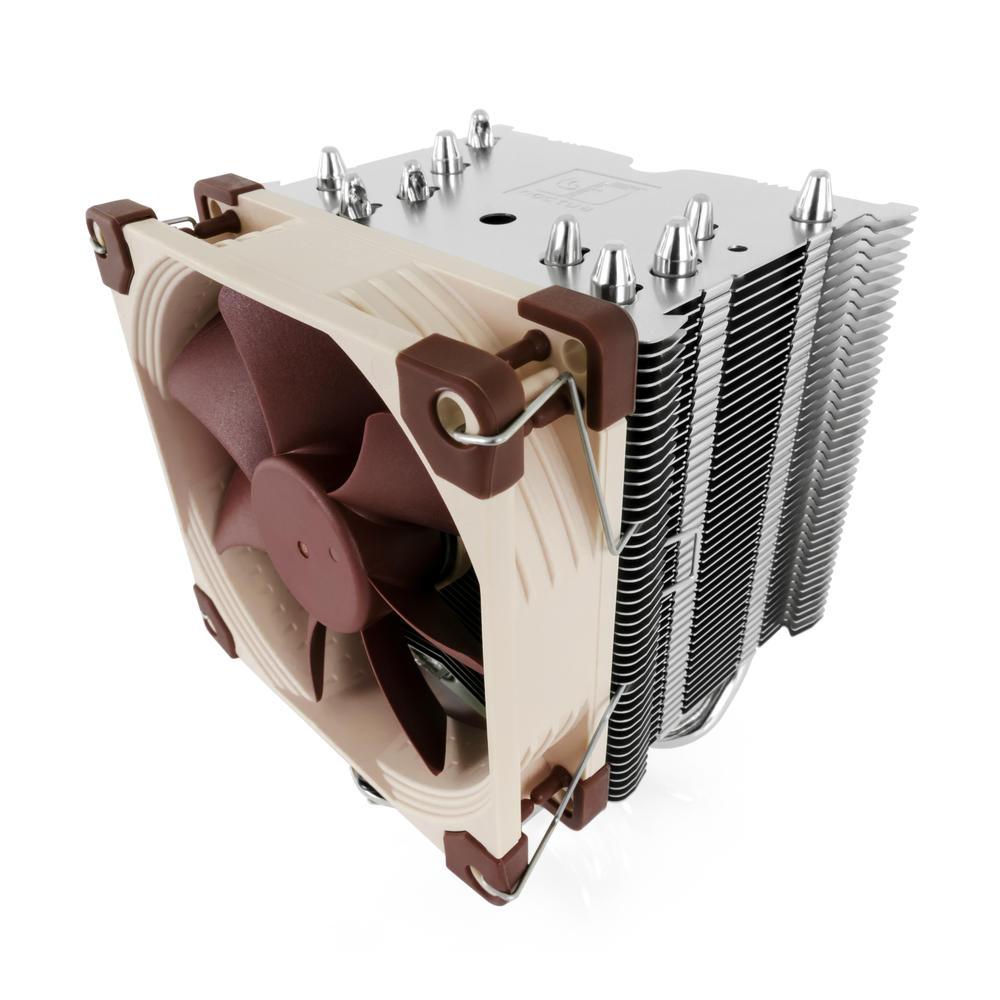

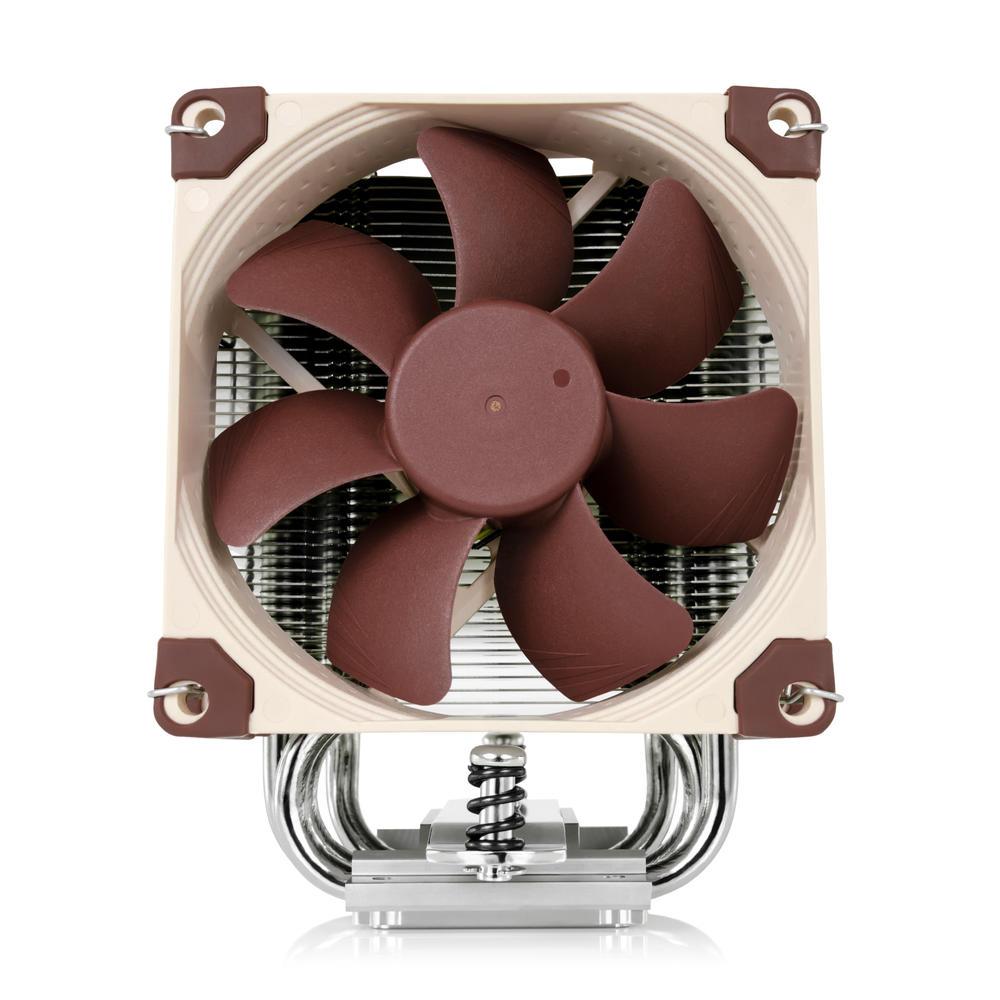

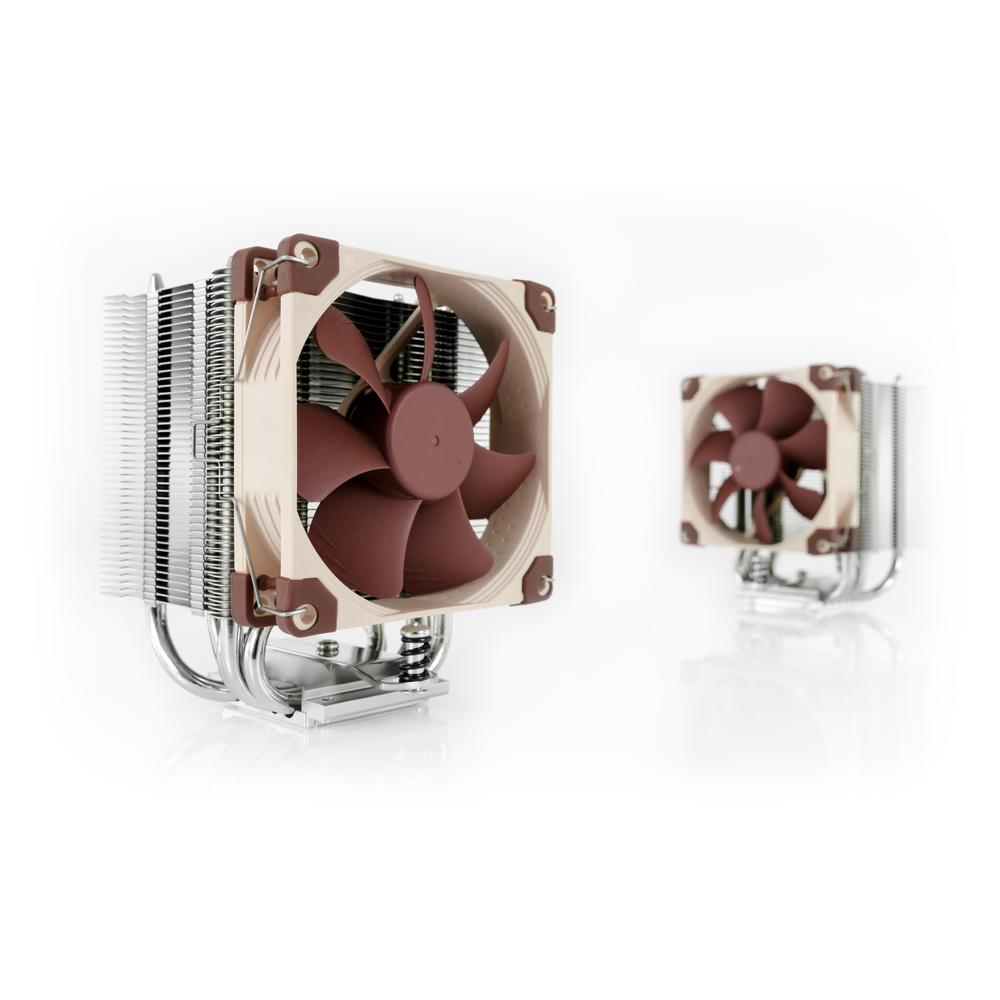

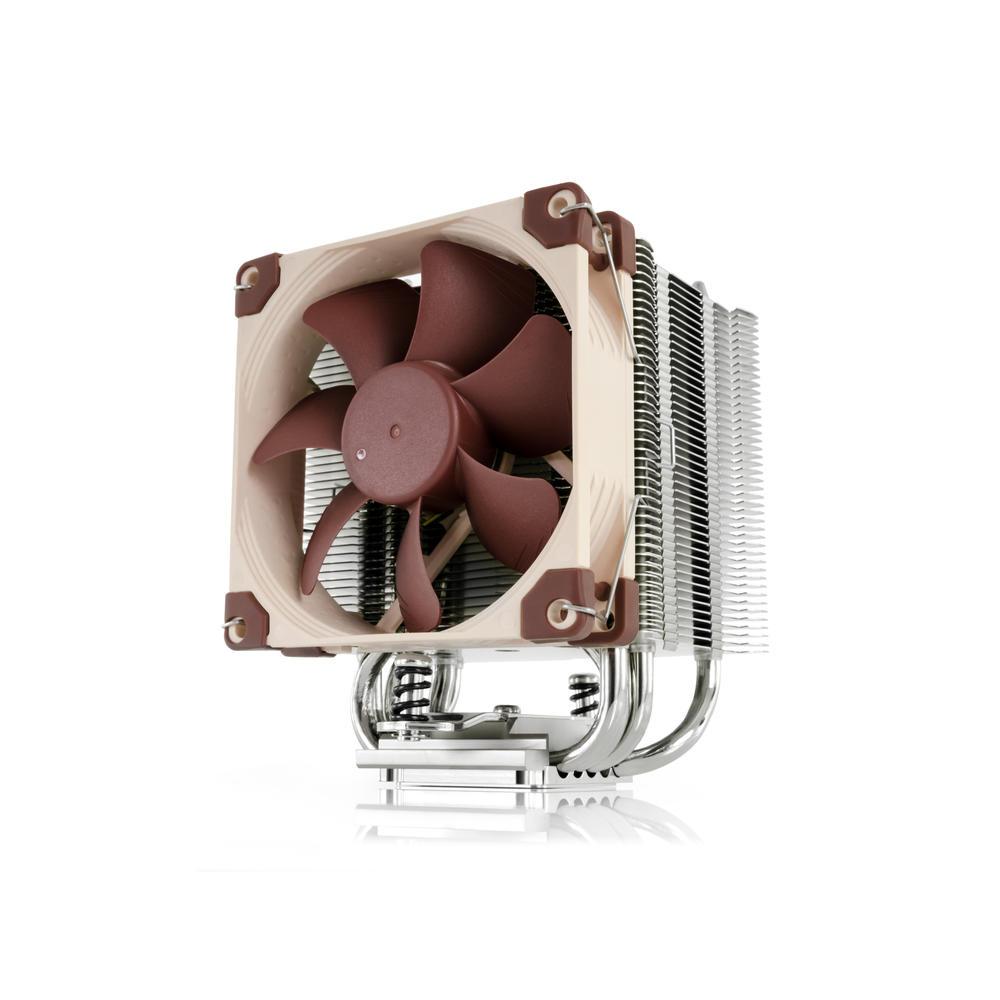

NH-U9S
Continuing the renowned legacy of Noctua’s award-winning NH-U9 series, the NH-U9S is a premium quality quiet CPU cooler in classic 9cm size. Its asymmetrical design with 5 heatpipes not only provides even better cooling performance than the previous generation but also improves compatibility: Thanks to its 95x95mm footprint, the NH-U9S clears the RAM and PCIe slots on all Intel and most AMD based mainboards, including µATX and ITX. Combined with its 125mm height, this makes the NH-U9S a highly versatile solution with excellent case, RAM and PCIe compatibility. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U9S is a deluxe choice through and through.
Cooler Specification
Socket compatibility
Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4-UxS)
Height (without fan)
125 mm
Width (without fan)
95 mm
Depth (without fan)
68 mm
Weight (without fan)
524 g
Height (with fan)
125 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
618 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
92x92x25

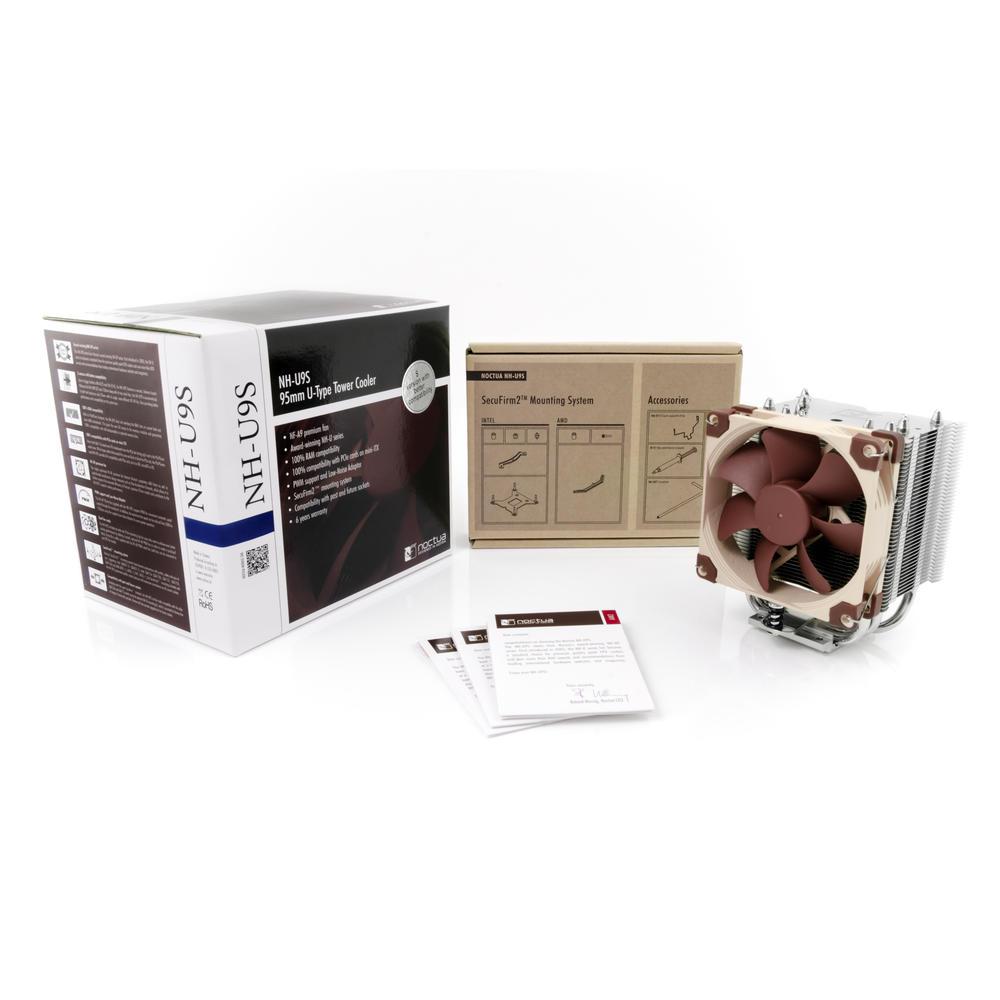

Scope of delivery
NF-A9 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit

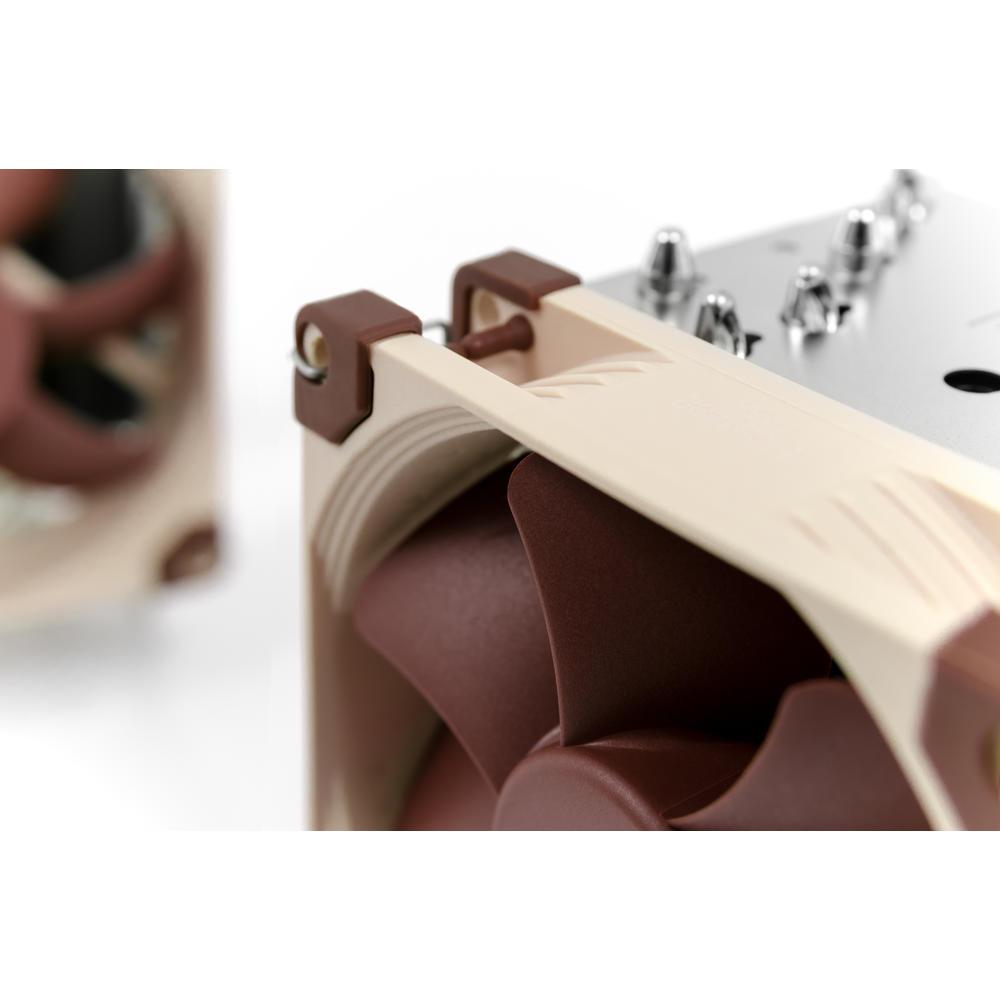

Fan-clips for second NF-A9
Noctua Metal Case-Badge
Warranty
6 Years
FAN Specification
Model
Noctua NF-A9 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1550 RPM
Min. rotational speed (PWM, +/-20%)
400 RPM
Max. airflow
78,9 m³/h
Max. airflow with L.N.A.
62,6 m³/h
Max. acoustical noise
22,8 dB(A)
Max. acoustical noise with L.N.A.
16,3 dB(A)
Input power
1,2 W
Voltage range
12 V
MTTF
> 150.000 h
